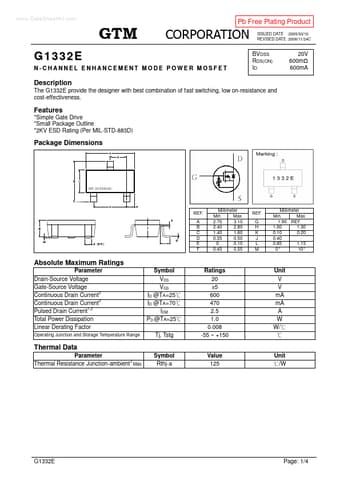

* Package Dimensions REF. A B C D E F Millimeter Min. Max. 2.70 3.10 2.40 2.80 1.40 1.60 0.35 0.50 0 0.10 0.45 0.55 REF. G H K J L M Millimeter Min. Max. 1.90 REF. 1.00 1.30 0.10 0.20 0.40 0.85 1.15 0° 10° Absolute Maximum Ratings Parameter Drain-Source Voltage Gate-Source Voltage Continuous Dra
G1332E
GTM
289.21 KB
N-channel enhancement mode power mosfet.
www.DataSheet4U.com
Pb Free Plating Product
ISSUED DATE :2005/03/10 REVISED DATE :2006/11/24C
G1332E
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
BVDSS .
