G1337 - Dual Rail-to-Rail CMOS Comparators

This page provides the datasheet information for the G1337, a member of the G1337-GlobalMixed Dual Rail-to-Rail CMOS Comparators family.

Description

The G1337 is a dual low voltage rail-to-rail CMOS comparators with open-drain output.

It is guaranteed to operate from 2.7V to 8V power supply.

The current consumption is as low as 7μA at 5V supply voltage.

Features

  • Guaranteed 2.7V to 8V Performance.
  • Open Drain Output.
  • Input Common Mode Beyond the Rails.
  • Low Supply Current 7μA at 5V Power Supply.
  • Operating Temperature Range -40°C to +85°C.
  • TDFN2X2-8 & SOT-23-8 Package Available General.

📥 Download Datasheet

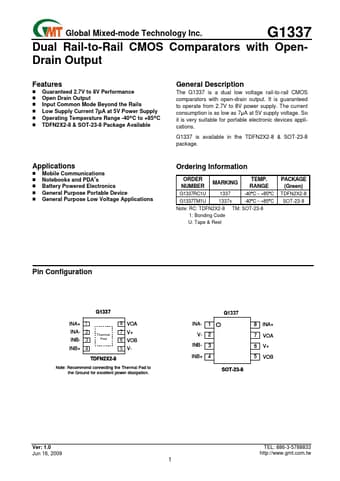

Datasheet preview – G1337

Datasheet Details

Part number G1337
Manufacturer Global Mixed-mode Technology
File Size 72.73 KB
Description Dual Rail-to-Rail CMOS Comparators
Datasheet download datasheet G1337 Datasheet
Additional preview pages of the G1337 datasheet.

📁 Similar Datasheet

Other Datasheets by Global Mixed-mode Technology
  • G1331 - Low Voltage Comparator
  • G1335 - Rail-to-Rail CMOS Comparator
  • G1336B - Rail-to-Rail CMOS Comparator Adjustable Different Charge/Discharge Time

Full PDF Text Transcription

Click to expand full text
Global Mixed-mode Technology Inc. G1337 Dual Rail-to-Rail CMOS Comparators with Open- Drain Output Features „ Guaranteed 2.7V to 8V Performance „ Open Drain Output „ Input Common Mode Beyond the Rails „ Low Supply Current 7μA at 5V Power Supply „ Operating Temperature Range -40°C to +85°C „ TDFN2X2-8 & SOT-23-8 Package Available General Description The G1337 is a dual low voltage rail-to-rail CMOS comparators with open-drain output. It is guaranteed to operate from 2.7V to 8V power supply. The current consumption is as low as 7μA at 5V supply voltage. So it is very suitable for portable electronic devices applications. G1337 is available in the TDFN2X2-8 & SOT-23-8 package.
