G1335 - Rail-to-Rail CMOS Comparator

This page provides the datasheet information for the G1335, a member of the G1335-GlobalMixed Rail-to-Rail CMOS Comparator family.

Description

The G1335 is a low voltage rail-to-rail CMOS comparator with open-drain output.

It is guaranteed to operate from 2.7V to 8V power supply.

The current consumption is as low as 3.5μA at 5V supply voltage.

Features

  • Guaranteed 2.7V to 8V Performance.
  • Open Drain Output.
  • Input Common Mode Beyond the Rails.
  • Low Supply Current 3.5μA at 5V Power Supply.
  • Operating Temperature Range -40°C to +85°C.
  • SOT-23-5 and SC-70-5 package available General.

📥 Download Datasheet

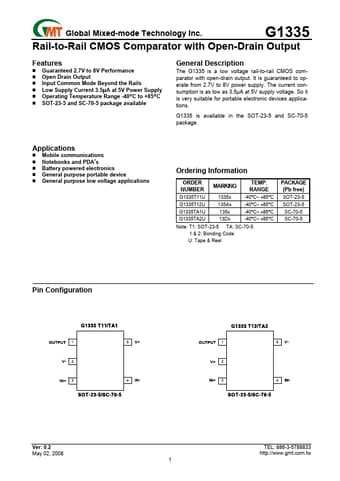

Datasheet preview – G1335

Datasheet Details

Part number G1335
Manufacturer Global Mixed-mode Technology
File Size 148.81 KB
Description Rail-to-Rail CMOS Comparator
Datasheet download datasheet G1335 Datasheet
Additional preview pages of the G1335 datasheet.

📁 Similar Datasheet

Other Datasheets by Global Mixed-mode Technology
  • G1331 - Low Voltage Comparator
  • G1336B - Rail-to-Rail CMOS Comparator Adjustable Different Charge/Discharge Time
  • G1337 - Dual Rail-to-Rail CMOS Comparators

Full PDF Text Transcription

Click to expand full text
Global Mixed-mode Technology Inc. G1335 Rail-to-Rail CMOS Comparator with Open-Drain Output Features „ Guaranteed 2.7V to 8V Performance „ Open Drain Output „ Input Common Mode Beyond the Rails „ Low Supply Current 3.5μA at 5V Power Supply „ Operating Temperature Range -40°C to +85°C „ SOT-23-5 and SC-70-5 package available General Description The G1335 is a low voltage rail-to-rail CMOS comparator with open-drain output. It is guaranteed to operate from 2.7V to 8V power supply. The current consumption is as low as 3.5μA at 5V supply voltage. So it is very suitable for portable electronic devices applications. G1335 is available in the SOT-23-5 and SC-70-5 package.
