G1336B - Rail-to-Rail CMOS Comparator Adjustable Different Charge/Discharge Time

This page provides the datasheet information for the G1336B, a member of the G1336B-GlobalMixed Rail-to-Rail CMOS Comparator Adjustable Different Charge/Discharge Time family.

Description

The G1336B is a low voltage rail-to-rail CMOS comparator with hysteresis push-pull output.

The charge/ discharge time is different and can be adjusted by using the capacitor on the TCAP pin.

It is guaranteed to operate from 2.7V to 8V power supply.

Features

  • Guaranteed 2.7V to 8V Performance.
  • Push-Pull Output with Hysteresis.
  • 3.3V output @ 5V supply voltage.
  • Input Common Mode Beyond the Rails.
  • Low Supply Current 5μA at 5V Power Supply.
  • Operating Temperature Range -40°C to +85°C.
  • SOT-23-6 package available General.

📥 Download Datasheet

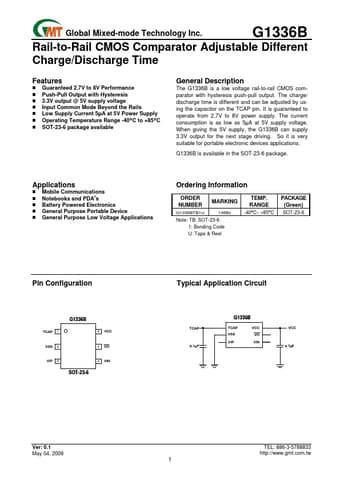

Datasheet preview – G1336B

Datasheet Details

Part number G1336B
Manufacturer Global Mixed-mode Technology
File Size 71.12 KB
Description Rail-to-Rail CMOS Comparator Adjustable Different Charge/Discharge Time
Datasheet download datasheet G1336B Datasheet
Additional preview pages of the G1336B datasheet.

📁 Similar Datasheet

Other Datasheets by Global Mixed-mode Technology
  • G1331 - Low Voltage Comparator
  • G1335 - Rail-to-Rail CMOS Comparator
  • G1337 - Dual Rail-to-Rail CMOS Comparators

Full PDF Text Transcription

Click to expand full text
Global Mixed-mode Technology Inc. G1336B Rail-to-Rail CMOS Comparator Adjustable Different Charge/Discharge Time Features „ Guaranteed 2.7V to 8V Performance „ Push-Pull Output with Hysteresis „ 3.3V output @ 5V supply voltage „ Input Common Mode Beyond the Rails „ Low Supply Current 5μA at 5V Power Supply „ Operating Temperature Range -40°C to +85°C „ SOT-23-6 package available General Description The G1336B is a low voltage rail-to-rail CMOS comparator with hysteresis push-pull output. The charge/ discharge time is different and can be adjusted by using the capacitor on the TCAP pin. It is guaranteed to operate from 2.7V to 8V power supply. The current consumption is as low as 5μA at 5V supply voltage. When giving the 5V supply, the G1336B can supply 3.
