GMBCP56 - NPN SILICON EPITAXIAL TRANSISTOR

Product Overview

GTM

Part number	GMBCP56
Manufacturer	GTM
File Size	177.50 KB
Description	NPN SILICON EPITAXIAL TRANSISTOR
Datasheet	GMBCP56 Datasheet
Additional preview pages of the GMBCP56 datasheet.

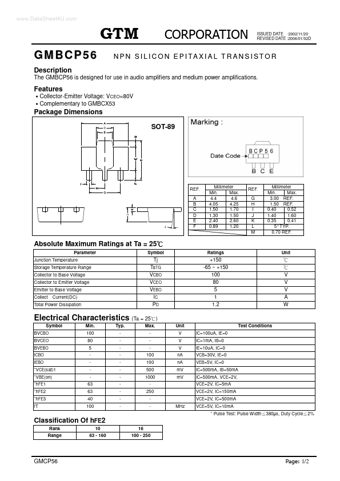

N P N S I L I C O N E P I TA X I A L T R A N S I S T O R The GMBCP56 is designed for use in audio amplifiers and medium power amplifications. Collector-Emitter Voltage: VCEO=80V Complementary to GMBCX53 Package Dimensions SOT-89 REF. A B C D E F Millimeter Min. Max. 4.4 4.6 4.05 4.25 1.50 1.70 1.30 1.50 2.40 2.60 0.89 1.20 REF. G H I J K L M Millimeter Min. Max. 3.00 REF. 1.50 REF. 0.40 0.52 1.40 1.60 0.35 0.41 5° TYP. 0.70 REF. Absolute Maximum Ratings at Ta = 25 Parameter Junction Tem.
