GSC103A - DUAL OPERATIONAL AMP AND VOLTAGE REFERENCE

Datasheet Summary

Description

The GSC103A is a monolithic IC that includes one independent op-amp and another op-amp foe which the non inverting input is wired to a 2.5V fixed Voltage Reference.

This device is offering space and cost saving in many applications like power supply management or data acquisition system.

📥 Download Datasheet

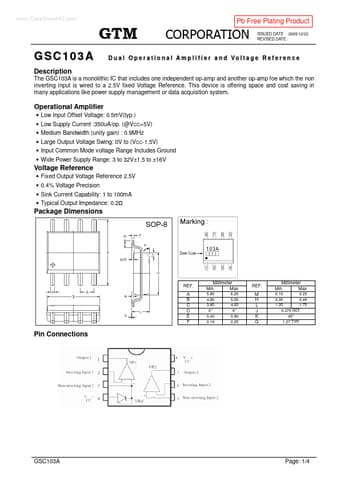

Datasheet preview – GSC103A

Datasheet Details

Part number GSC103A
Manufacturer GTM
File Size 219.79 KB
Description DUAL OPERATIONAL AMP AND VOLTAGE REFERENCE
Datasheet download datasheet GSC103A Datasheet
Additional preview pages of the GSC103A datasheet.
