GSC1384 - NPN EPITAXIAL PLANAR TRANSISTOR

Datasheet Summary

Description

The GSC1384 is designed for power amplifier and driver.

Features

  • Low collector to emitter saturation voltage VCE(sat).
  • Complementary pair with GSA684 Package Dimensions D E S1 TO-92 A b1 S E A T IN G PLANE L C e1 b e REF. A S1 b b1 C Millimeter Min. Max. 4.45 4.7 1.02 - 0.36 0.51 0.36 0.76 0.36 0.51 REF. D E L e1 e Millimeter Min. Max. 4.44 4.7 3.30 3.81 12.70 1.150 1.390 2.42 2.66 Absolute Maximum Ratings (Ta = 25к,unless otherwise specified) Parameter Ratings Unit Collector to Base Voltage VCBO 60 V Collector to Emitte.

📥 Download Datasheet

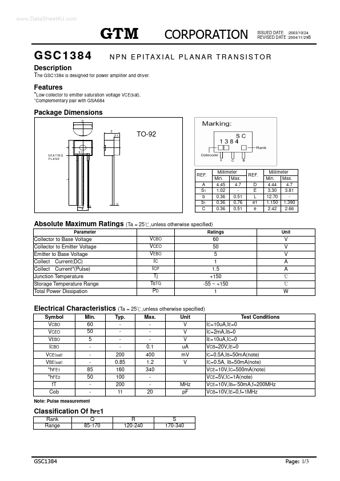

Datasheet preview – GSC1384

Datasheet Details

Part number GSC1384
Manufacturer GTM
File Size 395.07 KB
Description NPN EPITAXIAL PLANAR TRANSISTOR
Datasheet download datasheet GSC1384 Datasheet
