BL055N06T-5DL8 - N-Channel Enhancement Mode MOSFET

Product Overview

Galaxy Microelectronics

Part number	BL055N06T-5DL8
Manufacturer	Galaxy Microelectronics
File Size	810.36 KB
Description	N-Channel Enhancement Mode MOSFET
Datasheet	BL055N06T-5DL8 Datasheet

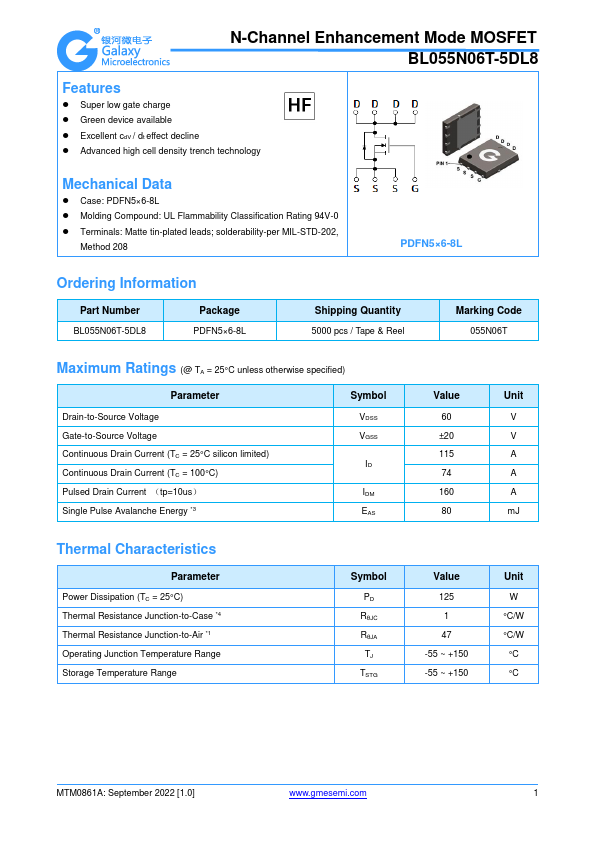

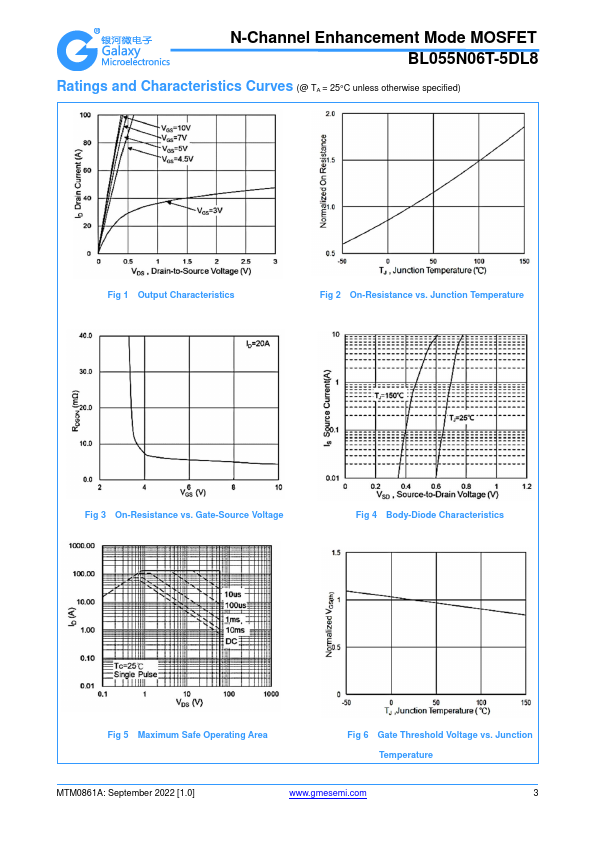

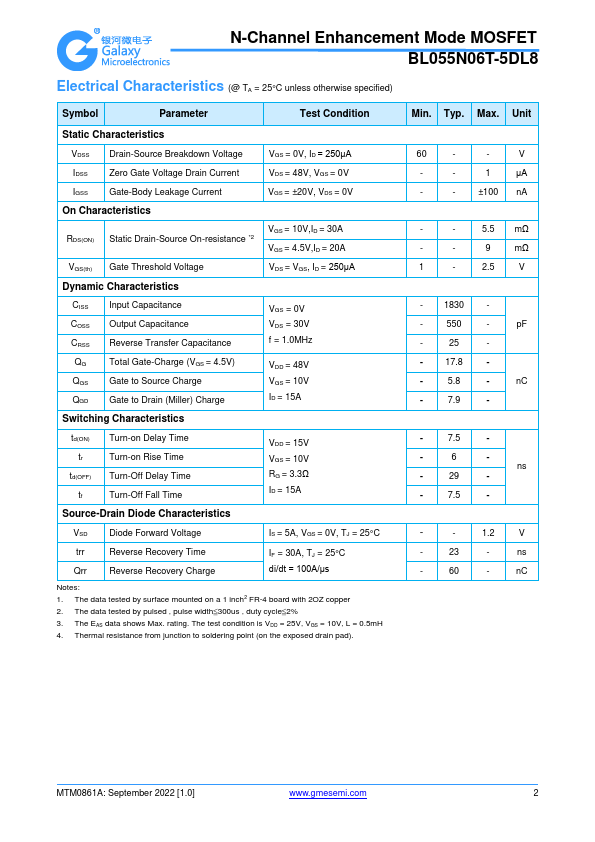

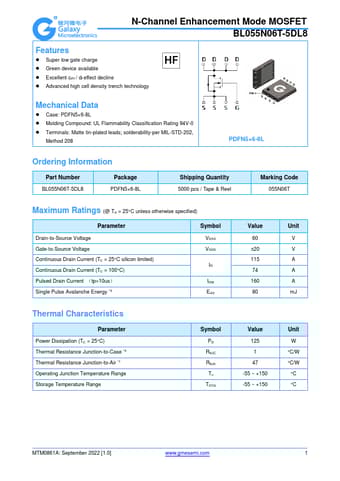

Additional preview pages of the BL055N06T-5DL8 datasheet.

Super low gate charge.
Green device available.
Excellent cdV / dt effect decline.
Advanced high cell density trench technology Mechanical Data.
Case: PDFN5×6-8L.
Molding Compound: UL Flammability Classification Rating 94V-0.
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN5×6-8L Ordering Information Part Number BL055N06T-5DL8 Package PDFN5×6-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 055N06T Maximum Rating.
