BL0510, BL0509 - General Infrared Ray Remote Control Receiver

BL0510 Description

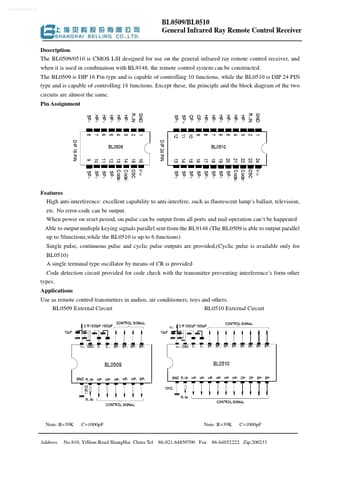

www.DataSheet4U.com BL0509/BL0510 General Infrared Ray Remote Control Receiver .
The BL0509/0510 is CMOS LSI designed for use on the general infrared ray remote control receiver, and when it is used in combination with BL9148, the.

BL0510 Features

* ¡¤ High anti-interference: excellent capability to anti-interfere, such as fluorescent lamp’s ballast, television, etc. No error-code can be output. ¡¤ When power on reset period, on pulse can be output from all ports and mal-operation can’t be happened ¡¤ Able to output multiple keying signals para

BL0510 Applications

* Use as remote control transmitters in audios, air conditioners, toys and others. BL0509 External Circuit BL0510 External Circuit CONTROL SIGNAL 10µF VDD OSC C 1 C 2 SP 1 SP 2 SP 3 SP 4 SP 5 SP 6 SP 7 SP 8 VDD C R 1000pF 1000pF CONTROL SIGNAL GND R X IN HP1 HP2 HP3 HP4 HP5 SP5 V DD OSC Code 1 Code

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BL0510, BL0509. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
BL0510, BL0509
Manufacturer
SHANGHAI BELLING
File Size
79.81 KB
Datasheet
BL0509_SHANGHAIBELLING.pdf
Description
General Infrared Ray Remote Control Receiver
Note
This datasheet PDF includes multiple part numbers: BL0510, BL0509.
Please refer to the document for exact specifications by model.
