BL0508A1 Datasheet - SHANGHAI BELLING

BL0508A1 Infrared Remote Control Transmitter

The BL0508A1 is an infrared remote control transmitter LSI. There are 32 function keys and 3 double action keys . The transmission code consists of “leader pulse”, “16bit customer code ”and “16 bit date ”. Using microprocessors for decode, various applications can be realized. (BL0508A1 is compatibl.

BL0508A1 Features

* ¡¤ Low voltage operation: VDD=2.0~3.3V ¡¤ Low power consumption: IDD ≤ 1¦Ì A at standby mode ¡¤ A system with high interference resistance and an extremely low error rate . ¡¤ Fewer external parts ¡¤ Use of ceramic resonator with a 400 to 500kHz oscillation is designed for non-adjustment operation A

BL0508A1_SHANGHAIBELLING.pdf

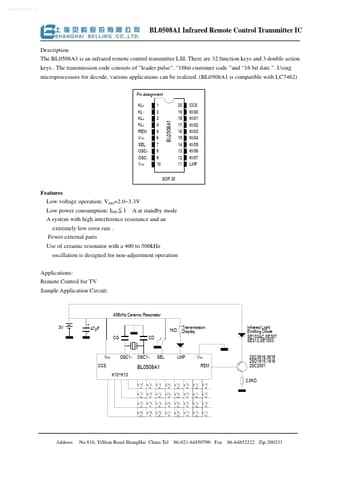

Preview of BL0508A1 PDF

Datasheet Details

Part number:

BL0508A1

Manufacturer:

SHANGHAI BELLING

File Size:

85.81 KB

Description:

Infrared remote control transmitter.
