LL4151 Small Signal Diodes

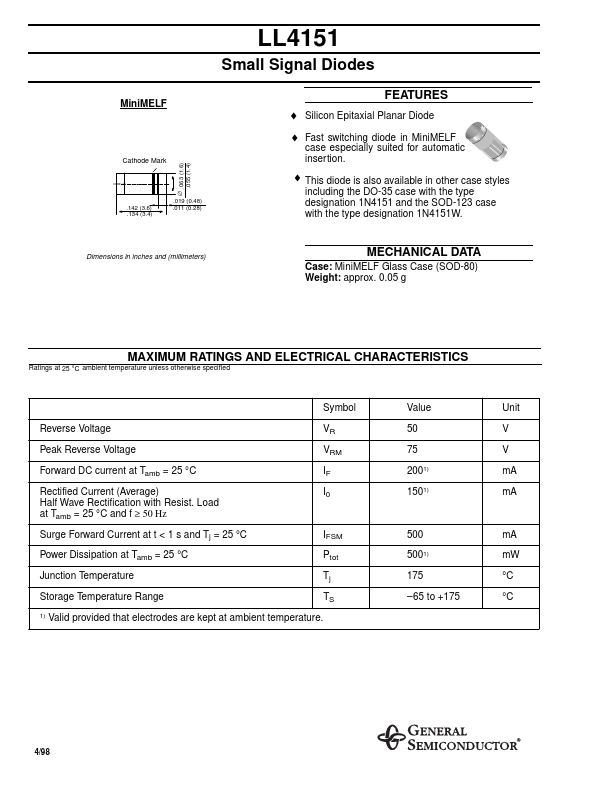

📥 Download Datasheet  Datasheet Preview Page 1

Description

LL4151 Small Signal Diodes MiniMELF Cathode Mark ∅ .063 (1.6) .055 (1.4) .142 (3.6) .134 (3.4) .019 (0.48) .011 (0.28) .

📥 Download Datasheet

Preview of LL4151 PDF

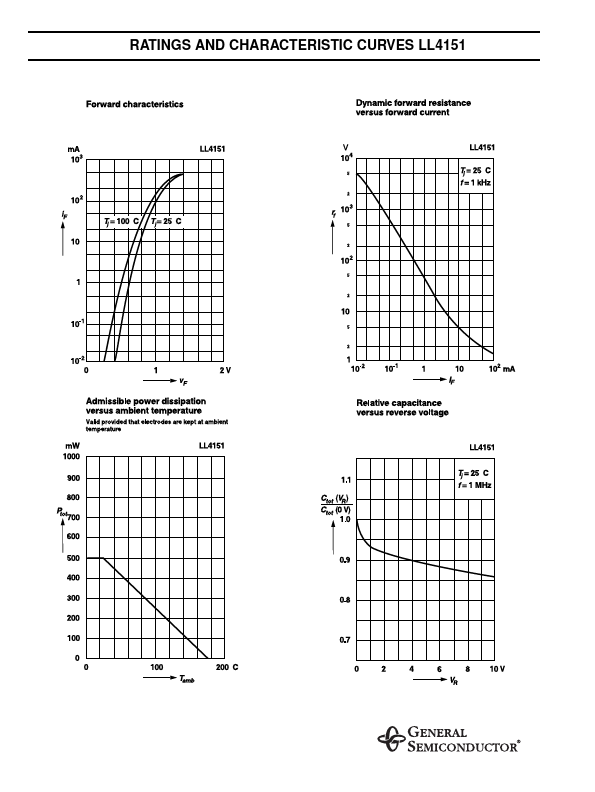

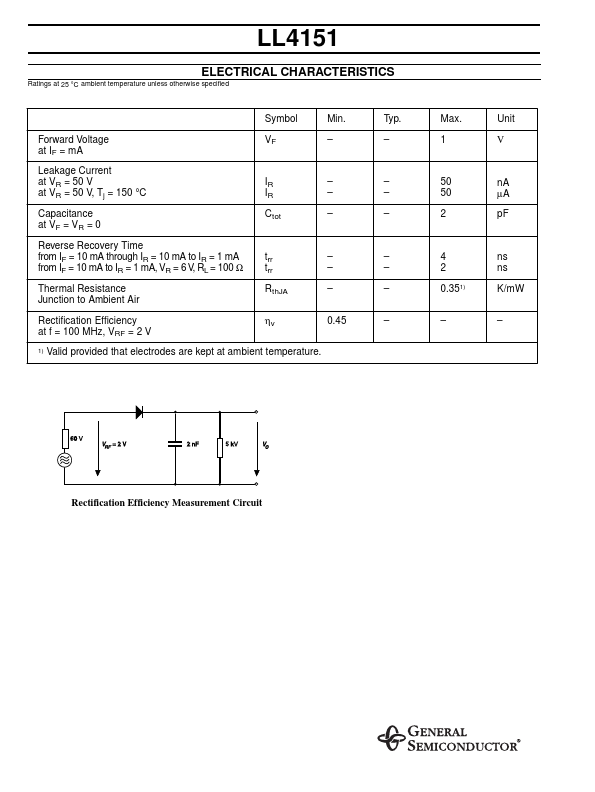

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LL4151
Manufacturer
General Electric
File Size
153.57 KB
Datasheet
LL4151-GeneralElectric.pdf
Description
Small Signal Diodes

Features

* Silicon Epitaxial Planar Diode
* Fast switching diode in MiniMELF case especially suited for automatic insertion.
* This diode is also available in other case styles including the DO-35 case with the type designation 1N4151 and the SOD-123 case with the type designation 1N4
