2W005G GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

2W005G Description

2W005G THRU 2W10G GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Case Style WOG 0.388 (9.86) 0.348 (8.84) 0.220 (5..

2W005G Features

* 1.0 (25.4) MIN. 0.032 (0.81) 0.028 (0.71) 0.060 (1.52) 0.020 (0.51)
* Plastic package has Underwriters Laboratory Flammability Recognition 94V-0
* This series is UL listed under the Recognized Component Index, file number E54214
* Glass passivated chip junctions

📥 Download Datasheet

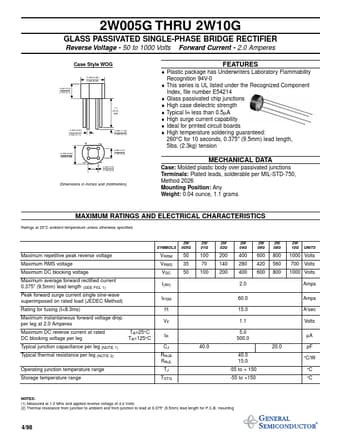

Preview of 2W005G PDF
datasheet Preview Page 2

Datasheet Details

Part number
2W005G
Manufacturer
General Semiconductor
File Size
123.49 KB
Datasheet
2W005G_GeneralSemiconductor.pdf
Description
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
