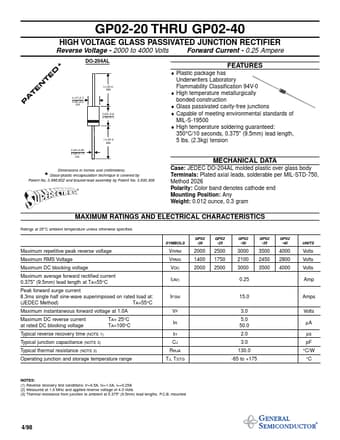

GP02-20 - HIGH VOLTAGE GLASS PASSIVATED JUNCTION RECTIFIER

General Semiconductor

Datasheet Details

Part number	GP02-20
Manufacturer	General Semiconductor
File Size	59.29 KB
Description	HIGH VOLTAGE GLASS PASSIVATED JUNCTION RECTIFIER
Datasheet	GP02-20_GeneralSemiconductor.pdf

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Glass passivated cavity-free junctions.
Capable of meeting environmental standards of MIL-S-19500.
High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension N T E D.
P A T E 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1) 1.0 (25.4) MI.
