GP02-30 - HIGH VOLTAGE GLASS PASSIVATED JUNCTION RECTIFIER

Datasheet Summary

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • High temperature metallurgically bonded construction.
  • Glass passivated cavity-free junctions.
  • Capable of meeting environmental standards of MIL-S-19500.
  • High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension N T E D.
  • P A T E 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1) 1.0 (25.4) MI.

📥 Download Datasheet

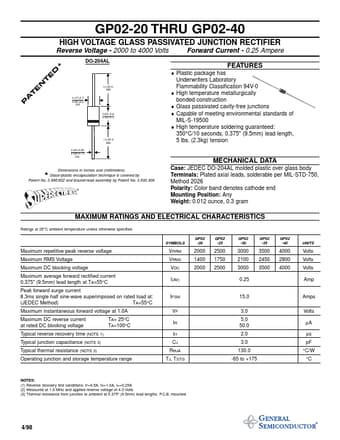

Datasheet preview – GP02-30
