GP0115AA, GP01 Datasheet - NKK

GP0115AA Ultra-Miniature Size Ideal

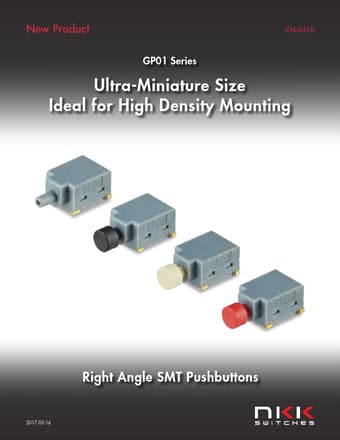

New Product CN-0310 GP01 Series Ultra-Miniature Size Ideal for High Density Mounting Right Angle SMT Pushbuttons 2017-05-16 Series GP01 Ultra-Miniature Right Angle SMT Pushbuttons General Specifications Electrical Capacity (Resistive Load) Logic Level: 0.4VA maximum @ 28V AC/DC maximum (Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V) Other Ratings Contact Resistance: 80 milliohms maximum Insulation Resistance: 500 megohms minimum @ 500V DC Dielectric Strength: 500V AC minimum f.

GP01-NKK.pdf

This datasheet PDF includes multiple part numbers: GP0115AA, GP01. Please refer to the document for exact specifications by model.
GP0115AA Datasheet Preview Page 2 GP0115AA Datasheet Preview Page 3

Datasheet Details

Part number:

GP0115AA, GP01

Manufacturer:

NKK

File Size:

281.37 KB

Description:

Ultra-miniature size ideal.

Note:

This datasheet PDF includes multiple part numbers: GP0115AA, GP01.
Please refer to the document for exact specifications by model.
