Datasheet Details

Part number GP01
Manufacturer NKK
File Size 281.37 KB
Description Ultra-Miniature Size Ideal
Datasheet download datasheet GP01 Datasheet
Additional preview pages of the GP01 datasheet.

📁 Similar Datasheet

  • GP001-JCG12832A05-01 - LCD (GEMINI)
  • GP001-JCG12832A08-01 - LCD (GEMINI)
  • GP002-JCG12864A45 - LCD Module (JHD)
  • GP02-20 - HIGH VOLTAGE GLASS PASSIVATED JUNCTION RECTIFIER (General Semiconductor)
  • GP02-20 - High Voltage Glass Passivated Junction Plastic Rectifier (Vishay)
  • GP02-20 - MINIATURE HIGH VOLTAGE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (EIC)
  • GP02-25 - HIGH VOLTAGE GLASS PASSIVATED JUNCTION RECTIFIER (General Semiconductor)
  • GP02-25 - High Voltage Glass Passivated Junction Plastic Rectifier (Vishay)
  • GP02-25 - MINIATURE HIGH VOLTAGE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (EIC)
  • GP02-25 - 0.25A Sintered Glass Passivated High Voltage Rectifier (TAITRON)
Other Datasheets by NKK

Full PDF Text Transcription

Click to expand full text

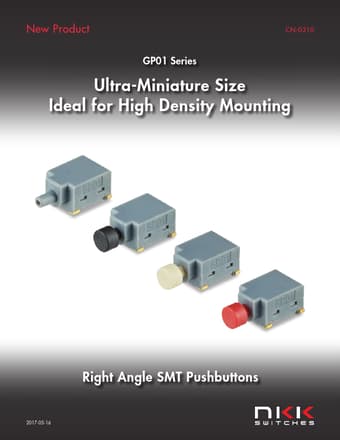

New Product CN-0310 GP01 Series Ultra-Miniature Size Ideal for High Density Mounting Right Angle SMT Pushbuttons 2017-05-16 Series GP01 Ultra-Miniature Right Angle SMT Pushbuttons General Specifications Electrical Capacity (Resistive Load) Logic Level: 0.4VA maximum @ 28V AC/DC maximum (Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V) Other Ratings Contact Resistance: 80 milliohms maximum Insulation Resistance: 500 megohms minimum @ 500V DC Dielectric Strength: 500V AC minimum for 1 minute minimum Mechanical Life: 40,000 operations minimum Electrical Life: 40,000 operations minimum Total Travel: .043” (1.
