RMB2S - MINIATURE GLASS PASSIVATED SINGLE-PHASE SURFACE MOUNT FAST RECOVERY BRIDGE RECTIFIER

General Semiconductor

Datasheet Details

Part number	RMB2S
Manufacturer	General Semiconductor
File Size	42.30 KB
Description	MINIATURE GLASS PASSIVATED SINGLE-PHASE SURFACE MOUNT FAST RECOVERY BRIDGE RECTIFIER

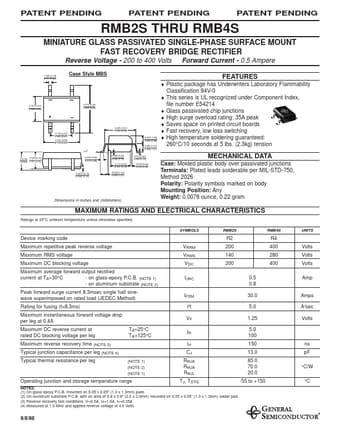

Datasheet	RMB2S_GeneralSemiconductor.pdf

Case Style MBS 0.161 (4.10) 0.144 (3.65) 0.272 (6.90) 0.252 (6.40) 0.205 (5.21) 0.195 (4.95) 0.105 (2.67) 0.095 (2.41) 0.195 (4.95) 0.179 (4.55) o 0.049 (1.24) 0.039 (0.99) 0.062 (1.57) 0.058 (1.47) 0.008 (0.20) 0.004 (0.10) 0.117 (2.97) 0.107 (2.72) 0.0075 (0.19) 0.0065 (0.16) 0.058 (1.47) 0.054 (1.37) 0.016 (0.41) 0.006 (0.15) 0.018 (0.46) 0.014 (0.36).
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
This series is UL recognized under Comp.
