RMBA09501 Datasheet - Fairchild Semiconductor

Cellular 2 Watt Linear GaAs MMIC Power Amplifier

RMBA09501 Features

* 2 Watt Linear output power at 36dBc ACPR1 for CDMA operation

* Small Signal Gain of > 30dB

* Small outline SMD package Device Absolute Ratings Symbol VDD VGS PRF TC TS Parameter Drain Supply Voltage1 Gate Supply Voltage RF Input Power (from 50Ω source) Case Operating Temp

RMBA09501 General Description

The RMBA09501 is a highly linear Power Amplifier. The two stage circuit uses our pHEMT process. It is designed for use as a driver stage for Cellular base stations, or as the output stage for Micro- and Pico-Cell base stations. The amplifier has been optimized for high linearity requirements for CDM.

RMBA09501 Datasheet (95.84 KB)

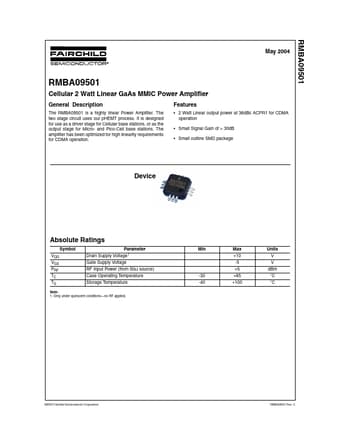

RMBA09501 Datasheet Preview — Preview of RMBA09501 PDF

Datasheet Details

Part number:

RMBA09501

Manufacturer:

Fairchild Semiconductor

File Size:

95.84 KB

Description:

Cellular 2 watt linear gaas mmic power amplifier.
