RMBA19500 Datasheet - Fairchild Semiconductor

PCS 2 Watt Linear GaAs MMIC Power Amplifier

RMBA19500 Features

* 2 Watt Linear output power at 36dBc ACPR1 for CDMA operation

* Small signal gain of 30dB typ.

* Small outline SMD package Device Absolute Ratings Symbol Vd Vg PRF TC TS Parameter Drain Supply Voltage1 Gate Supply Voltage RF Input Power (from 50Ω source) Operating Case Tem

RMBA19500 General Description

The RMBA19500 is a highly linear Power Amplifier. The circuit uses our pHEMT process. It has been designed for use as a driver stage for PCS base stations, or as the output stage for Micro- and Pico-Cell base stations. The amplifier has been optimized for high linearity requirements for CDMA operati.

RMBA19500 Datasheet (93.63 KB)

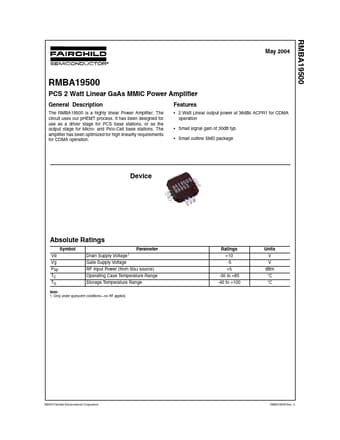

RMBA19500 Datasheet Preview — Preview of RMBA19500 PDF

Datasheet Details

Part number:

RMBA19500

Manufacturer:

Fairchild Semiconductor

File Size:

93.63 KB

Description:

Pcs 2 watt linear gaas mmic power amplifier.
