RMB2S Surface Mount Bridge Rectifiers

RMB2S Description

www.eicsemi.com RMB2S - RMB4S PRV : 200 - 400 Volts Io : 0.5 Ampere .

RMB2S Features

* :
* Glass passivated chip junctions.
* High surge overload rating : 35A peak
* Saves space on printed circuit boards.
* High temperature soldering guaranteed : 260 oC/10 seconds.
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retar

📥 Download Datasheet

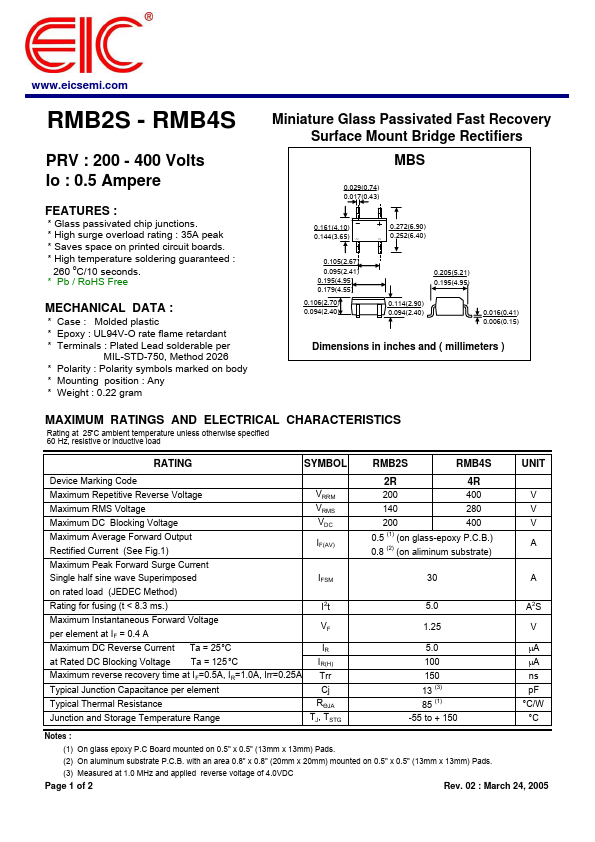

Preview of RMB2S PDF

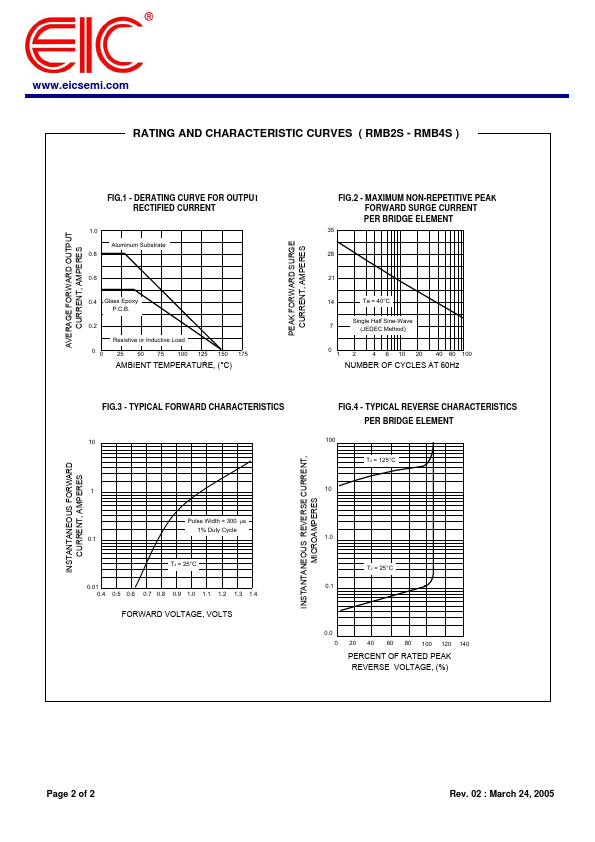

datasheet Preview Page 2

Datasheet Details

Part number
RMB2S
Manufacturer
EIC
File Size
118.81 KB
Datasheet
RMB2S-EIC.pdf
Description
Surface Mount Bridge Rectifiers
