RMBA19500A PCS1900 2 Watt GaAs MMIC Power Amplifier

The RMBA19500A is a highly linear Power Amplifier. The two stage circuit uses our pHEMT process. It has been designed for use as a driver stage for PCS1900 base stations, or as the output stage for Micro- and Pico-Cell base stations. The amplifier has been optimized for high linearity requirements f.

RMBA19500A Features

* 2 Watt linear output power at 36 dBc ACPR1 for CDMA operation

* OIP3 ≥ 43 dBm at 27 and 30 dBm output

* Small Signal Gain of > 30 dB

* Small outline SMD package Absolute Ratings Symbol Vd Vg PIN TC TSTG Parameter Drain Supply Voltage1 Gate Supply Voltage (max absol

RMBA19500A_FairchildSemiconductor.pdf

Preview of RMBA19500A PDF

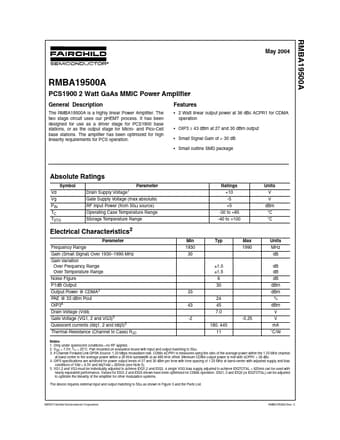

RMBA19500A Datasheet Preview Page 2 RMBA19500A Datasheet Preview Page 3
