RMB4S, RMB2S Surface Mount Bridge Rectifiers

EIC

RMB4S Description

www.eicsemi.com RMB2S - RMB4S PRV : 200 - 400 Volts Io : 0.5 Ampere .

RMB4S Features

* :
* Glass passivated chip junctions.
* High surge overload rating : 35A peak
* Saves space on printed circuit boards.
* High temperature soldering guaranteed : 260 oC/10 seconds.
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retar

📥 Download Datasheet

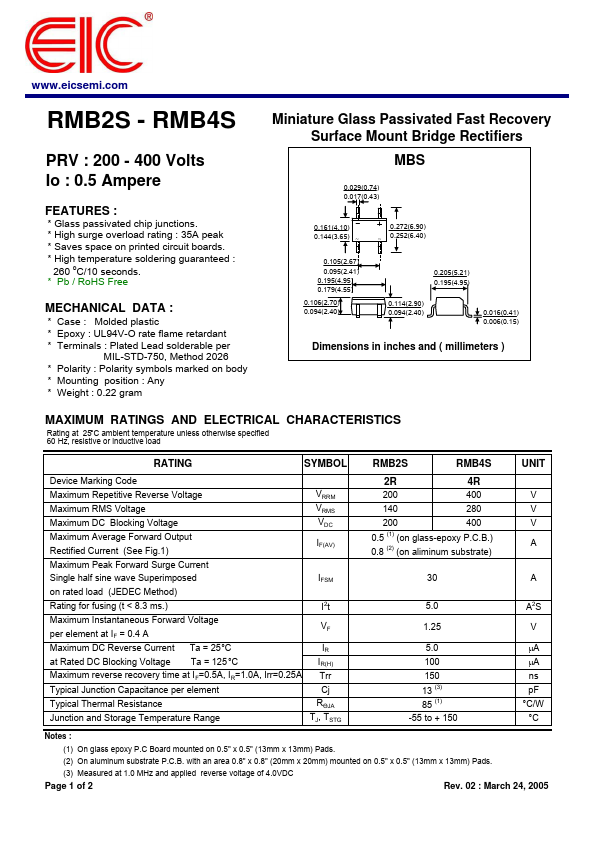

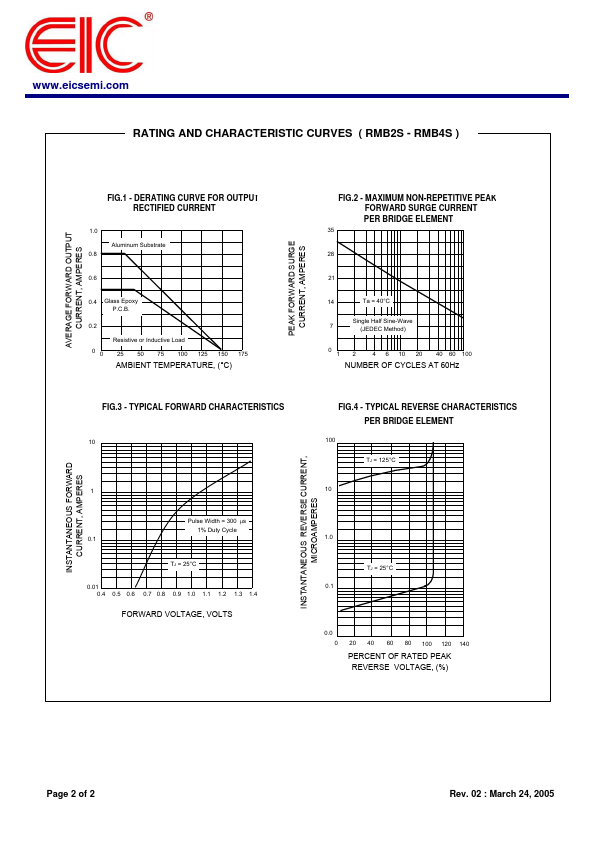

RMB4S Datasheet Preview — This datasheet PDF includes multiple part numbers: RMB4S, RMB2S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: RMB4S, RMB2S
Manufacturer: EIC
File Size: 118.81 KB
Datasheet: RMB2S-EIC.pdf
Description: Surface Mount Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: RMB4S, RMB2S.
Please refer to the document for exact specifications by model.
