GS1545 - HDTV Serial Digital Equalizing Receiver

Gennum Corporation

📥 Download Datasheet

GS1545 Datasheet Preview — Preview of GS1545 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: GS1545
Manufacturer: Gennum Corporation
File Size: 225.28 KB
Datasheet: GS1545_GennumCorporation.pdf
Description: HDTV Serial Digital Equalizing Receiver

GS1545 Product details

Description

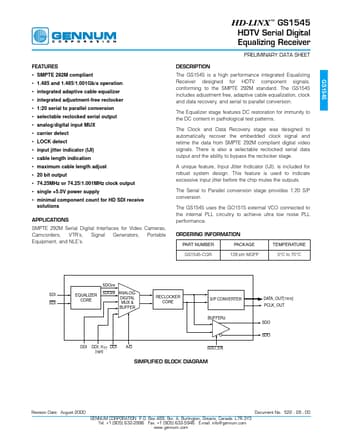

The GS1545 is a high performance integrated Equalizing Receiver designed for HDTV component signals, conforming to the SMPTE 292M standard.

Features

SMPTE 292M compliant.
1.485 and 1.485/1.001Gb/s operation.
integrated adaptive cable equalizer.
integrated adjustment-free reclocker.
1:20 serial to parallel conversion.
selectable reclocked serial output.
analog/digital input MUX.
carrier detect.
LOCK detect.
input jitter indicator (IJI).
cable length indication.
maximum cable length adjust.
20 bit output.
74.25MHz or 7.
