GS1574 - HD-LINX -TM II Adaptive Cable Equalizer

Gennum Corporation

GS1574 Description

www.DataSheet4U.com GS1574 HD-LINX ™ II Adaptive Cable Equalizer GS1574 Preliminary Data Sheet .
The GS1574 is a second-generation high-speed bipolar integrated circuit designed to equalize and restore signals received over 75Ω co-axial cable.

GS1574 Features

* SMPTE 292M, SMPTE 344M and SMPTE 259M compliant Automatic cable equalization Multi-standard operation from 143Mb/s to 1.485Gb/s Supports DVB-ASI at 270Mb/s Smal

GS1574 Applications

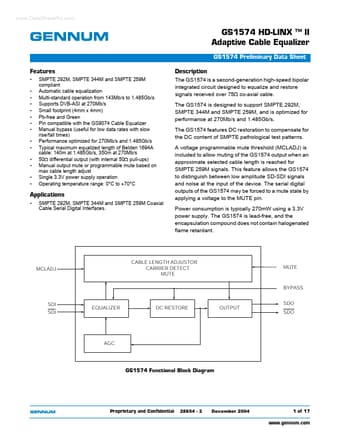

* SMPTE 292M, SMPTE 344M and SMPTE 259M Coaxial Cable Serial Digital Interfaces. MCLADJ CABLE LENGTH ADJUSTOR CARRIER DETECT MUTE MUTE BYPASS SDI SDI SDO SDO EQUALIZER DC RESTORE OUTPUT AGC GS1574 Functional Block Diagram Proprietary and Confidential 28854 - 2 December 2004 1 of

📥 Download Datasheet

GS1574 Datasheet Preview — Preview of GS1574 PDF

Datasheet Details

Part number: GS1574
Manufacturer: Gennum Corporation
File Size: 305.77 KB
Datasheet: GS1574_GennumCorporation.pdf
Description: HD-LINX -TM II Adaptive Cable Equalizer
