G1606 - Programmable 16+2 Channel Voltage Buffers

Global Mixed-mode Technology

📥 Download Datasheet

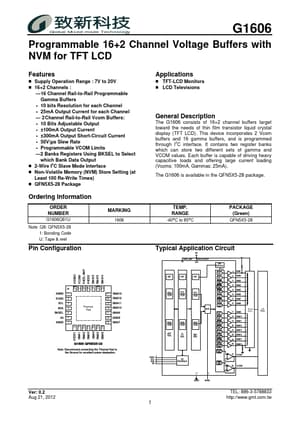

G1606 Datasheet Preview — Preview of G1606 PDF

Datasheet Details

Part number	G1606
Manufacturer	Global Mixed-mode Technology
File Size	64.85 KB
Description	Programmable 16+2 Channel Voltage Buffers
Datasheet	G1606-GlobalMixedmodeTechnology.pdf

G1606 Product details

Features

Supply Operation Range : 7V to 20V.
16+2 Channels : ---16 Channel Rail-to-Rail Programmable Gamma Buffers.
10 bits Resolution for each Channel.
25mA Output Current for each Channel --- 2 Channel Rail-to-Rail Vcom Buffers:.
10 Bits Adjustable Output.
±100mA Output Current.
±300mA Output Short-Circuit Current.
50V/μs Slew Rate.
Programmable VCOM Limits ---2 Banks Registers Using BKSEL to Select which Bank Data Output.
2-Wire I2C Slave.
