G1630, G1630-GlobalMixed - Programmable 8 + 1 Channel Voltage Buffers

Global Mixed-mode Technology

📥 Download Datasheet

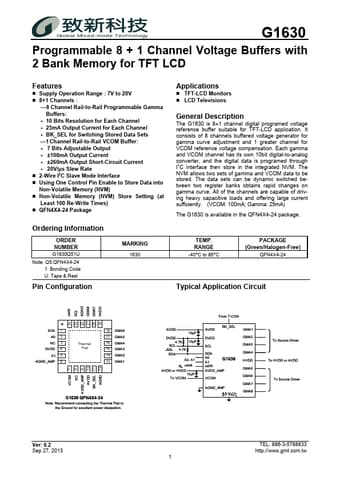

G1630 Datasheet Preview — This datasheet PDF includes multiple part numbers: G1630, G1630-GlobalMixed. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	G1630, G1630-GlobalMixed
Manufacturer	Global Mixed-mode Technology
File Size	120.82 KB
Description	Programmable 8 + 1 Channel Voltage Buffers
Datasheet	G1630-GlobalMixed-modeTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: G1630, G1630-GlobalMixed. Please refer to the document for exact specifications by model.

G1630 Product details

Description

The G1630 is 8+1 channel digital programed voltage reference buffer suitable for TFT-LCD

Features

Supply Operation Range : 7V to 20V.
8+1 Channels : ---8 Channel Rail-to-Rail Programmable Gamma Buffers:.
10 Bits Resolution for Each Channel.
25mA Output Current for Each Channel.
BK_SEL for Switching Stored Data Sets ---1 Channel Rail-to-Rail VCOM Buffer:.
7 Bits Adjustable Output.
±100mA Output Current.
±260mA Output Short-Circuit Current.
20V/μs Slew Rate.
2-Wire I2C Slave Mode Interface.
Using One Control Pin Enable to.
