G1612, G1612-GlobalMixed - Programmable Vcom Buffer

Global Mixed-mode Technology

📥 Download Datasheet

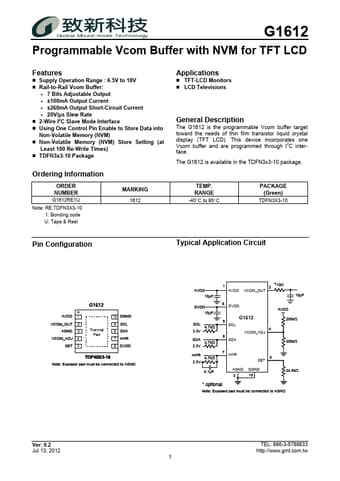

G1612 Datasheet Preview — This datasheet PDF includes multiple part numbers: G1612, G1612-GlobalMixed. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	G1612, G1612-GlobalMixed
Manufacturer	Global Mixed-mode Technology
File Size	115.47 KB
Description	Programmable Vcom Buffer
Datasheet	G1612-GlobalMixed-modeTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: G1612, G1612-GlobalMixed. Please refer to the document for exact specifications by model.

G1612 Product details

Description

The G1612 is the programmable Vcom buffer target toward the needs of thin film transistor liquid crystal display (TFT LCD).

Features

Supply Operation Range : 6.5V to 18V.
Rail-to-Rail Vcom Buffer:.
7 Bits Adjustable Output.
±100mA Output Current.
±260mA Output Short-Circuit Current.
20V/μs Slew Rate.
2-Wire I2C Slave Mode Interface.
Using One Control Pin Enable to Store Data into Non-Volatile Memory (NVM).
Non-Volatile Memory (NVM) Store Setting (at Least 100 Re-Write Times).
TDFN3x3-10 Package Ordering Information ORDER NUMBER G1612RE1U Note: RE:TDFN.
