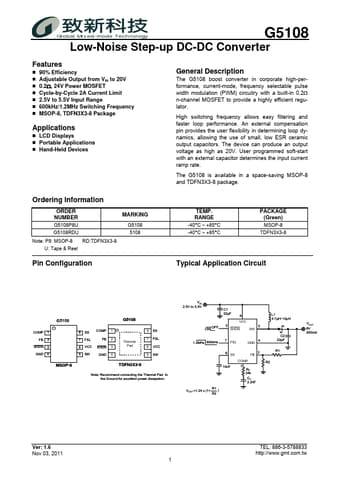

G5108 Datasheet, Converter, Global Mixed-mode Technology

G5108 Features

• Converter
• 90% Efficiency
• Adjustable Output from VIN to 20V
• 0.2Ω, 24V Power MOSFET
• Cycle-by-Cycle 2A Current Limit
• 2.5V to 5.5V Input Range
<

PDF File Details

Part number:

G5108

Manufacturer:

Global Mixed-mode Technology

File Size:

83.89kb

Download:

📄 Datasheet

Description:

Low-noise step-up dc-dc converter. The G5108 boost converter in corporate high-performance, current-mode, frequency selectable pulse width modulation (PWM) circuitry wi

G5108 Application

• Applications
• LCD Displays
• Portable Applications
• Hand-Held Devices General Description The G5108 boost converter in co
