G5138PE - Digital Green-Mode QR Primary-Side PWM Power Switch

Product Overview

Global Semiconductor

Datasheet Details

Part number	G5138PE
Manufacturer	Global Semiconductor
File Size	677.92 KB
Description	Digital Green-Mode QR Primary-Side PWM Power Switch
Datasheet	G5138PE Datasheet
Note	This datasheet PDF includes multiple part numbers: G5138PE, G5138PA. Please refer to the document for exact specifications by model.

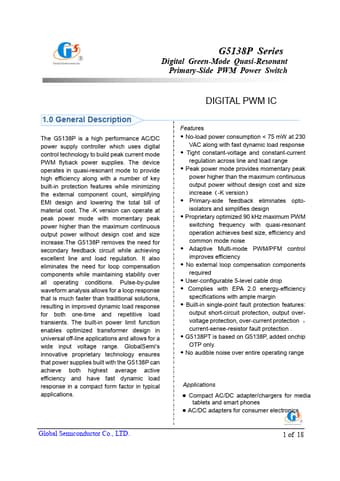

Additional preview pages of the G5138PE datasheet.

Product details

Description

The G5138P is a high performance AC/DC power supply controller which uses digital control technology to build peak current mode PWM flyback power supplies.

Features

while minimizing the external component count, simplifying EMI design and lowering the total bill of material cost. The -K version can operate at peak power mode with momentary peak power higher than the maximum continuous output power without design cost and size increase. The G5138P removes the need for secondary feedback circuit while achieving excellent line and load regulation. It also eliminates the need for loop compensation components while maintaining stability over all operating conditi.
