G656 - Microprocessor Reset IC

Global Mixed-mode Technology

Datasheet Details

Part number	G656
Manufacturer	Global Mixed-mode Technology
File Size	27.61 KB
Description	Microprocessor Reset IC
Datasheet	G656-GlobalMixedmodeTechnology.pdf

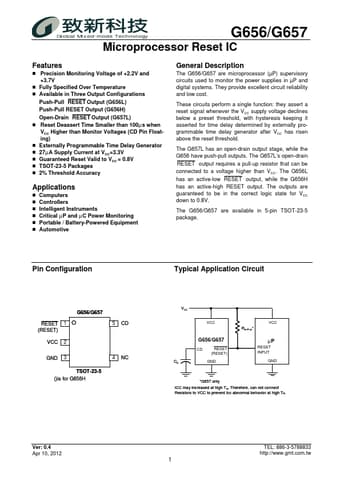

The G656/G657 are microprocessor (µP) supervisory circuits used to monitor the power supplies in µP and digital systems.

Precision Monitoring Voltage of +2.2V and +3.7V.
Fully Specified Over Temperature.
Available in Three Output Configurations Push-Pull RESET Output (G656L) Push-Pull RESET Output (G656H) Open-Drain RESET Output (G657L).
Reset Deassert Time Smaller than 100µs when VCC Higher than Monitor Voltages (CD Pin Floating).
Externally Programmable Time Delay Generator.
27µA Supply Current at VCC=3.3V.
Guaranteed Reset Valid to VCC = 0.8V.
