GS5801 - Synchronous Step-Up Converter

Globaltech

📥 Download Datasheet

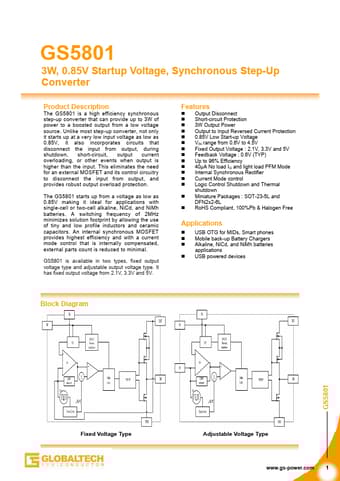

GS5801 Datasheet Preview — Preview of GS5801 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GS5801
Manufacturer	Globaltech
File Size	924.11 KB
Description	Synchronous Step-Up Converter
Datasheet	GS5801-Globaltech.pdf

GS5801 Product details

Description

The GS5801 is a high efficiency synchronous step-up converter that can provide up to 3W of power to a boosted output from a low voltage source.

Features

Output Disconnect.
Short-circuit Protection.
3W Output Power.
Output to Input Reversed Current Protection.
0.85V Low Start-up Voltage.
VIN range from 0.6V to 4.5V.
Fixed Output Voltage : 2.1V, 3.3V and 5V.
Feedback Voltage : 0.6V (TYP).
Up to 96% Efficiency.
40μA No load IQ and light load PFM Mode.
Internal Synchronous Rectifier.
Current Mode control.
Logic Control Shutdown and Thermal shutdown.
Miniature Packages : SOT-23-5L.
