GS5805

1MHz Step-Up PWM Converter

GS5805 Features

* Adjustable Output Voltage up to 12V Internal Soft-Start Fixed 1MHz Switching Frequency Current Mode Operation 12V Output at 1A from 5V Input Cycle-by-Cycle current limit Adjustable Over Current Protection Input Under Voltage Lockout Over-Temperature Protection Thermal Enhanced PSOP-8 Package RoHS Co

GS5805 General Description

The GS5805 is a current-mode boost DC/DC MOSFET to provide this regulator highly power efficient. The GS5805 operates at 1MHz allowing for easy filtering and low noise. Internal compensation makes the user to set system easily, which allows the use of small, low-ESR ceramic output capacitors. Fault .

GS5805 Datasheet (745.28 KB)

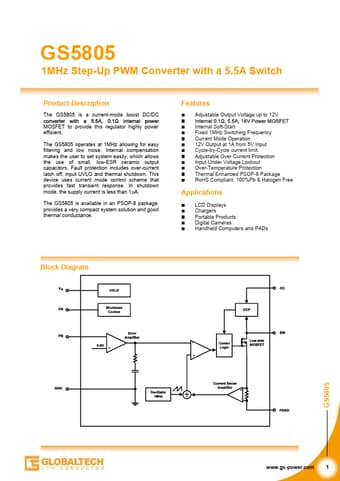

Preview of GS5805 PDF

Datasheet Details

Part number:

GS5805

Manufacturer:

Globaltech

File Size:

745.28 KB

Description:

1mhz step-up pwm converter.
