MDQ150A1600V

Single Phase Bridge Rectifier

MDQ150A1600V General Description

IO IRRM IFSM I²t VFM VTM Rth(j-c) Rth(c-h) wt DC Output Current @ Tj=150°C [Arms] Max. Repetitive Peak Reverse Current [mArms] Max. Peak, 1-Cycle Forward, Non-Repetitive Surge Current @ No Voltage Reapplied (10/8.3mSec) [Arms] Max. Peak, 1-Cycle Forward, Non-Repetitive Surge Current @ 100% VRRM Re.

MDQ150A1600V Datasheet (1.20 MB)

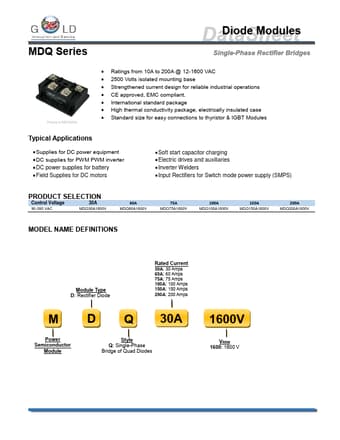

MDQ150A1600V Datasheet Preview — Preview of MDQ150A1600V PDF

Datasheet Details

Part number:

MDQ150A1600V

Manufacturer:

Gold Electric

File Size:

1.20 MB

Description:

Single phase bridge rectifier.
MDQ Series Diode Modules Picture is MDQ200A
* Ratings from 10A to 200A @ 12-1600 VAC
* 2500 Volts isolated mounting base
* Strengthened.
