MDQ10N026TH N-Channel MOSFET

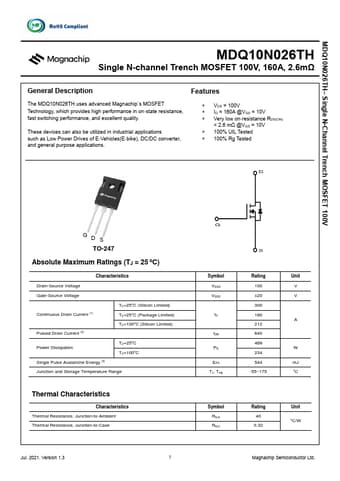

📥 Download Datasheet Datasheet Preview Page 1

Description

MDQ10N026TH * Single N-Channel Trench MOSFET 100V MDQ10N026TH Single N-channel Trench MOSFET 100V, 160A, 2.6mΩ General .
Features The MDQ10N026TH uses advanced Magnachip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching perform.

📥 Download Datasheet

Preview of MDQ10N026TH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MDQ10N026TH
Manufacturer
MagnaChip
File Size
1.07 MB
Datasheet
MDQ10N026TH-MagnaChip.pdf
Description
N-Channel MOSFET

Applications

* such as Low Power Drives of E-Vehicles(E-bike), DC/DC converter, and general purpose applications.  VDS = 100V  ID = 160A @VGS = 10V  Very low on-resistance RDS(ON) < 2.6 mΩ @VGS = 10V  100% UIL Tested  100% Rg Tested D GD S TO-247 Absolute Maximum Ratings (TJ = 25 oC) Characteristics Dra
