MDQ23N50D Datasheet, Mosfet, MagnaChip

MDQ23N50D Features

  • Mosfet
  • VDS = 500V
  • ID = 23A
  • RDS(ON) ≤ 0.245Ω Applications
  • Power Supply
  • HID
  • Lighting @ VGS = 10V @ VGS = 10V D TO-247 S DG GG

PDF File Details

Part number:

MDQ23N50D

Manufacturer:

MagnaChip

File Size:

1.10MB

Download:

📄 Datasheet

Description:

N-channel trench mosfet. . These N-channel MOSFET are produced using advanced Magnachip’s MOSFET Technology, which provides low onstate resistance, high switc

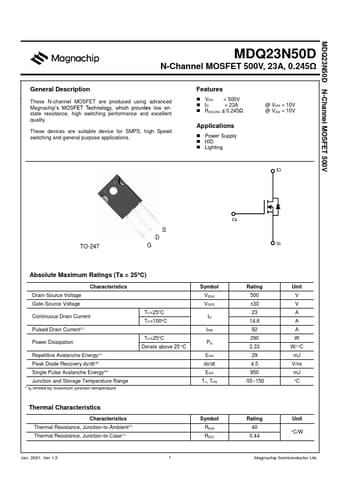

Datasheet Preview: MDQ23N50D 📥 Download PDF (1.10MB)
Page 2 of MDQ23N50D Page 3 of MDQ23N50D

MDQ23N50D Application

  • Applications Features
  • VDS = 500V
  • ID = 23A
  • RDS(ON) ≤ 0.245Ω Applications
  • Power Supply
  • HID

TAGS

MDQ23N50D
N-Channel
Trench
MOSFET
MagnaChip
