MDQ14N049TH, N-channel MOSFET

MDQ14N049TH * Single N-Channel Trench MOSFET 135V MDQ14N049TH Single N-channel Trench MOSFET 135V, 160A, 4.9mΩ General .
Features The MDQ14N049TH, Magnachip’s latest generation of MV MOSFET Technology, which provides high performance in the lowest Rds(on), fast switchi.

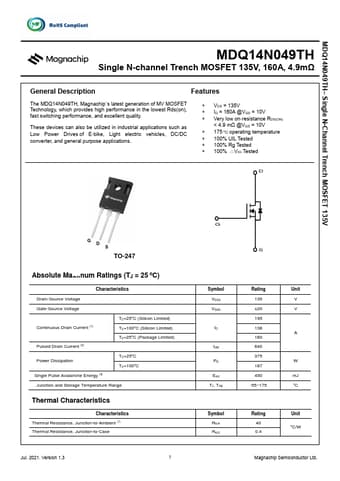

datasheet Preview Page 1 from Datasheet4u.com

MDQ14N049TH-MagnaChip.pdf

MDQ14N049TH Datasheet Preview — Preview of MDQ14N049TH PDF

Datasheet Details

Part number:

MDQ14N049TH

Manufacturer:

MagnaChip

File Size:

1.23 MB

Description:

N-channel MOSFET

Applications

* such as Low Power Drives of E-bike, Light electric vehicles, DC/DC converter, and general purpose applications.  VDS = 135V  ID = 160A @VGS = 10V  Very low on-resistance RDS(ON) < 4.9 mΩ @VGS = 10V  175 oC operating temperature  100% UIL Tested  100% Rg Tested  100% △VDS Tested D GDS TO-24
