HM3710K - N-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

📥 Download Datasheet

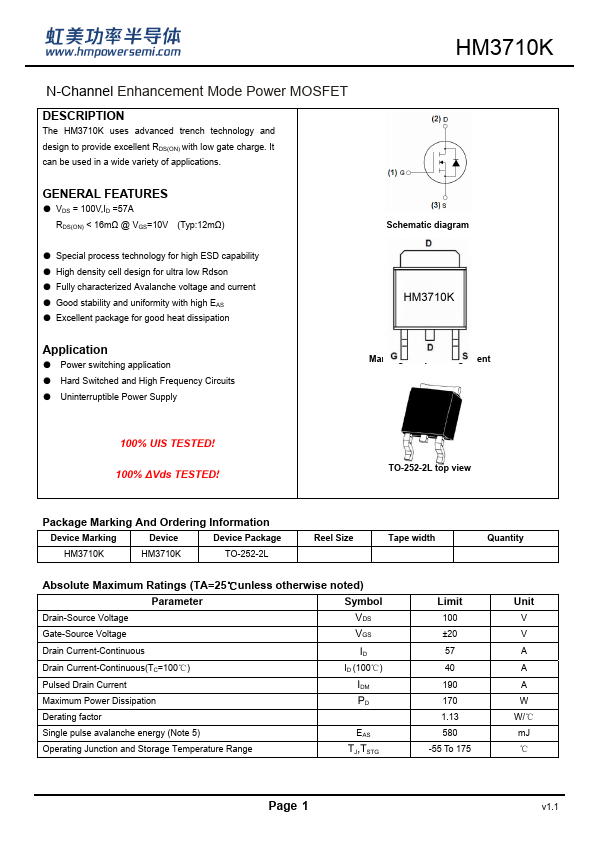

HM3710K Datasheet Preview — Preview of HM3710K PDF

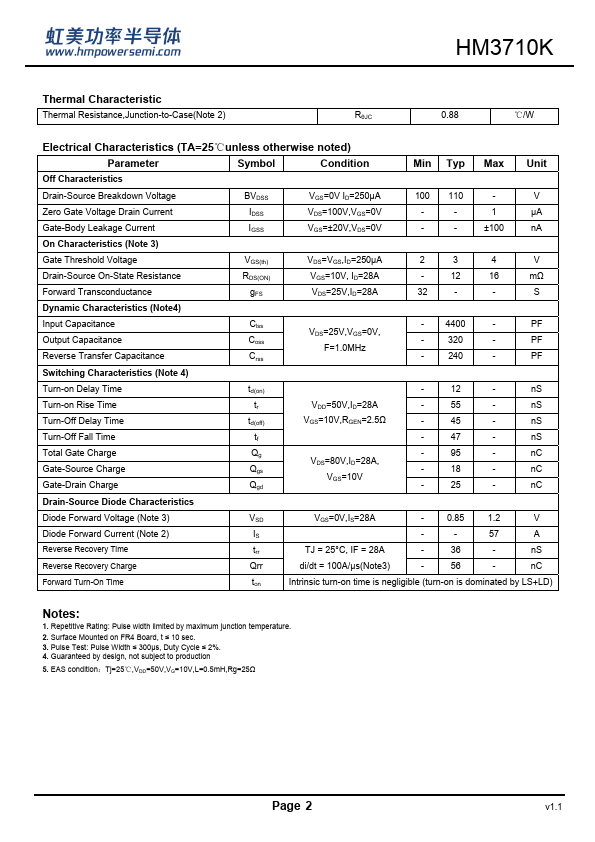

datasheet Preview Page 2

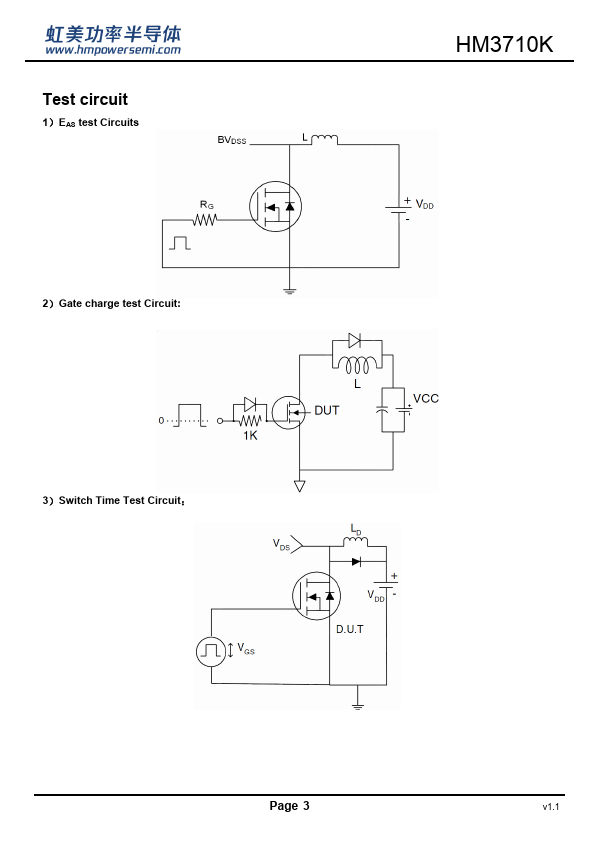

datasheet Preview Page 3

Datasheet Details

Part number	HM3710K
Manufacturer	H&M Semiconductor
File Size	613.60 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM3710K-HMSemiconductor.pdf

HM3710K Product details

Description

The HM3710K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS = 100V,ID =57A RDS(ON) < 16mΩ @ VGS=10V (Typ:12mΩ) Sc hematic diagram.
Special process technology for high ESD capability.
High density cell design for ultra low Rdson.
Fully characterized Avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation HM3710K.
