HM40N25F, HM40N25 Datasheet - H&M Semiconductor

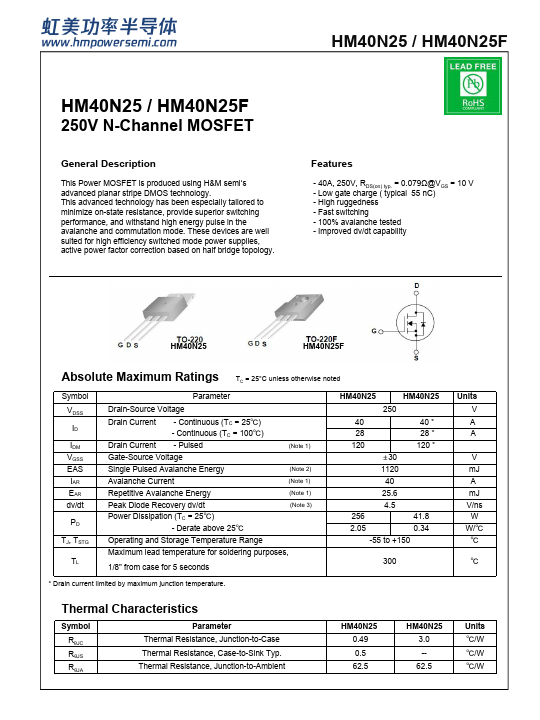

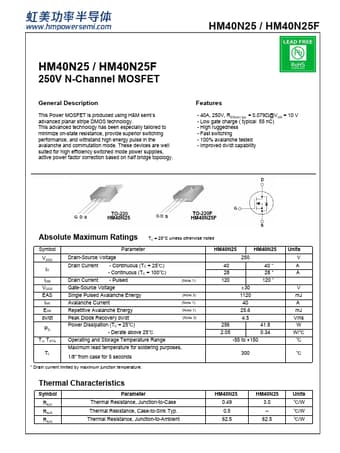

HM40N25F 250V N-Channel MOSFET

This Power MOSFET is produced using H&M semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices a.

HM40N25F Features

* - 40A, 250V, RDS(on) typ. = 0.079Ω@VGS = 10 V - Low gate charge ( typical 55 nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability HM40N25 HM40N25F Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG

HM40N25-HMSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HM40N25F, HM40N25. Please refer to the document for exact specifications by model.

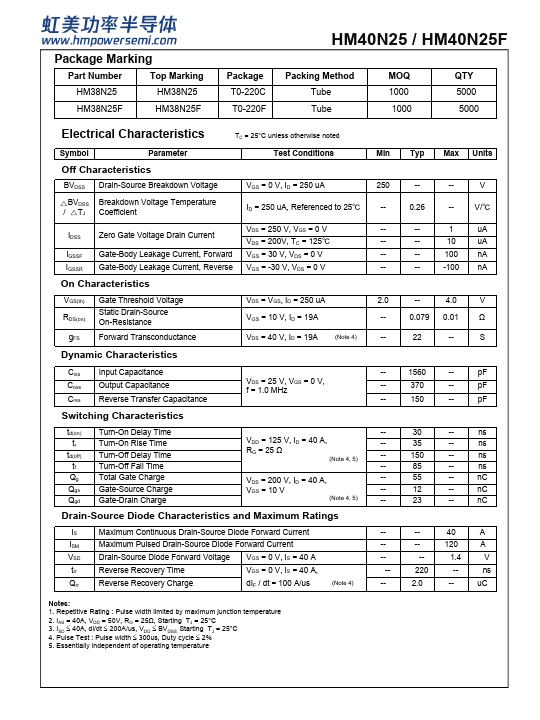

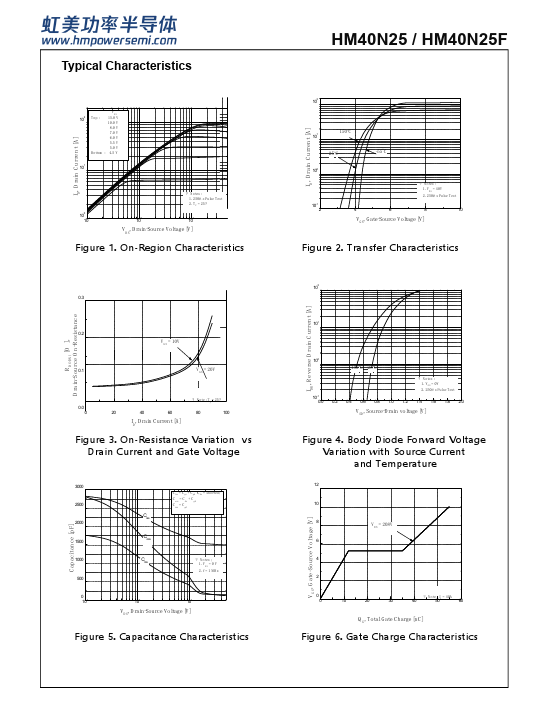

HM40N25F Datasheet Preview Page 2 HM40N25F Datasheet Preview Page 3

Datasheet Details

Part number:

HM40N25F, HM40N25

Manufacturer:

H&M Semiconductor

File Size:

0.99 MB

Description:

250v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: HM40N25F, HM40N25.
Please refer to the document for exact specifications by model.
