HM5N65 650V N-Channel MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

+01 / +01) +01 / +01) 650V N-Channel MOSFET General .
This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

📥 Download Datasheet

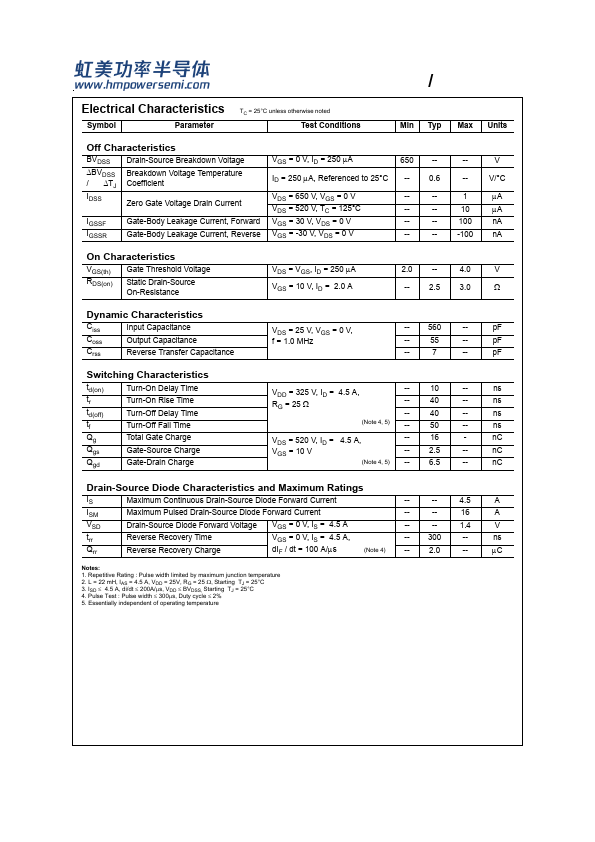

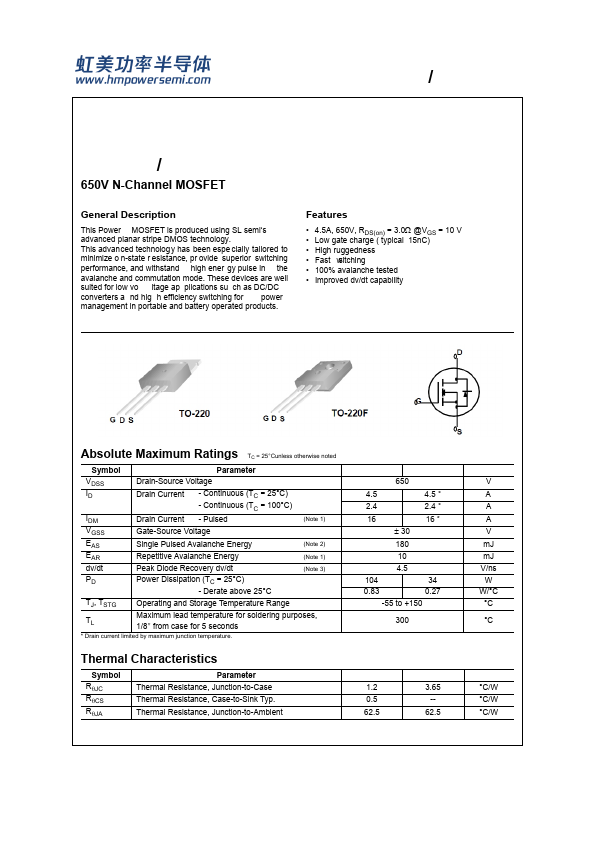

Preview of HM5N65 PDF

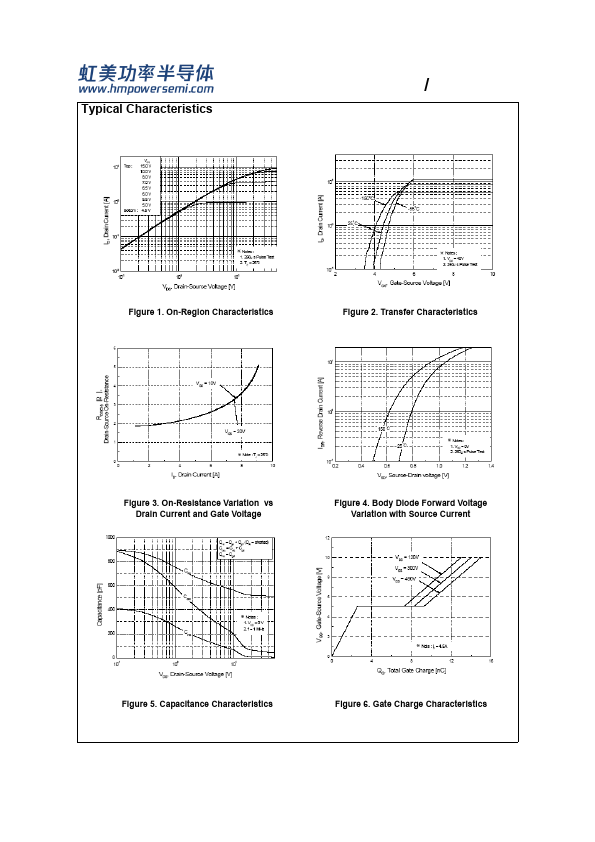

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HM5N65
Manufacturer
H&M Semiconductor
File Size
446.30 KB
Datasheet
HM5N65-HMSemiconductor.pdf
Description
650V N-Channel MOSFET

Features

* 4.5A, 650V, RDS(on) = 3.0 @VGS = 10 V
* Low gate charge ( typical 15nC)
* High ruggedness
* Fast wsitching
* 100% avalanche tested
* Improved dv/dt capability Absolute Maximum Ratings TC = 25°Cunless otherwise noted Symbol Parameter
