HM7333H, HM7318H, 300mA Low Power LDO

HM73XXH 300mA Low Power LDO .
The HM73XXH series is a set of three-terminal low power high voltage regulators implemented in CMOS technology.

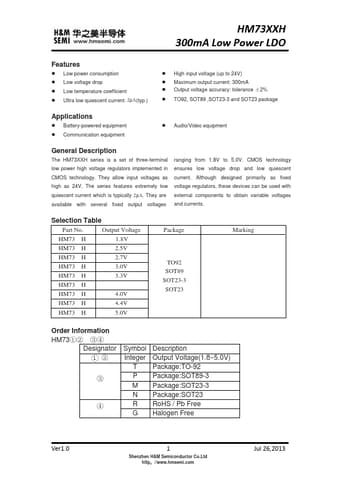

datasheet Preview Page 1 from Datasheet4u.com

HM7318H-HMSemiconductor.pdf

HM7333H Datasheet Preview — This datasheet PDF includes multiple part numbers: HM7333H, HM7318H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HM7333H, HM7318H

Manufacturer:

H&M Semiconductor

File Size:

1.24 MB

Description:

300mA Low Power LDO

Note:

This datasheet PDF includes multiple part numbers: HM7333H, HM7318H.
Please refer to the document for exact specifications by model.

Features

* Low power consumption
* Low voltage drop
* Low temperature coefficient
* Ultra low quiescent current: 2μA(typ. )
* High input voltage (up to 24V)
* Maximum output current: 300mA
* Output voltage accuracy: tolerance ±2%
* TO92, SOT89 ,SOT23-3 and SOT23 package Appli

Applications

* Battery-powered equipment
* Communication equipment
