HM740 - 400V N-Channel MOSFET

HM740 Description

HM740 / HM740F +0740 / +0740F 400V N-Channel MOSFET General .
This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

HM740 Features

* 10.5A, 400V, RDS(on) = 0.55Ω @VGS = 10 V
* Low gate charge ( typical 30nC)
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability {D GDS TO-220 GD S TO-220F
* ◀▲ {G
* {S Absolute Maximum Ratings TC = 25°Cunless otherwi

📥 Download Datasheet

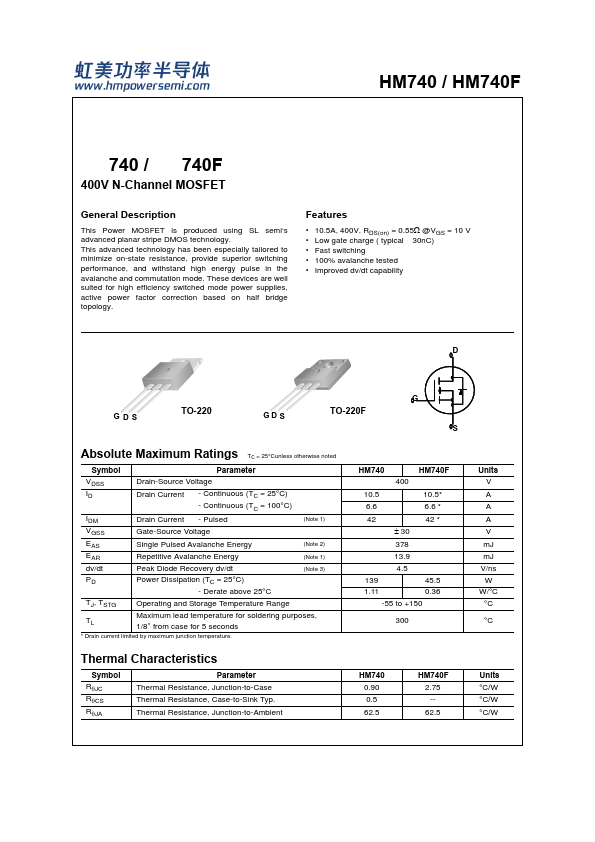

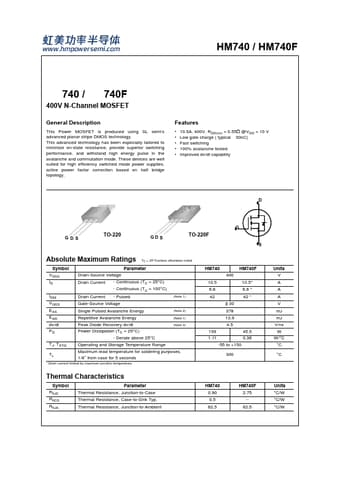

Preview of HM740 PDF

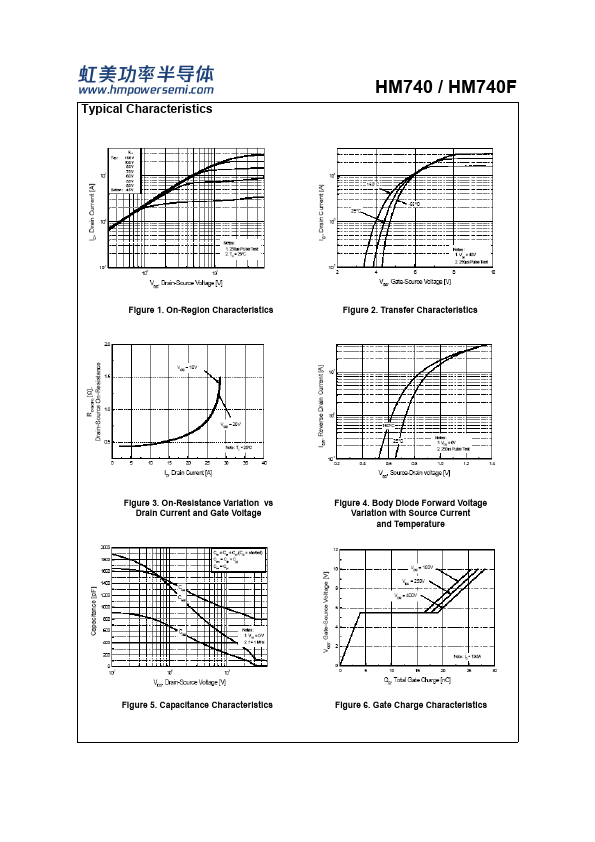

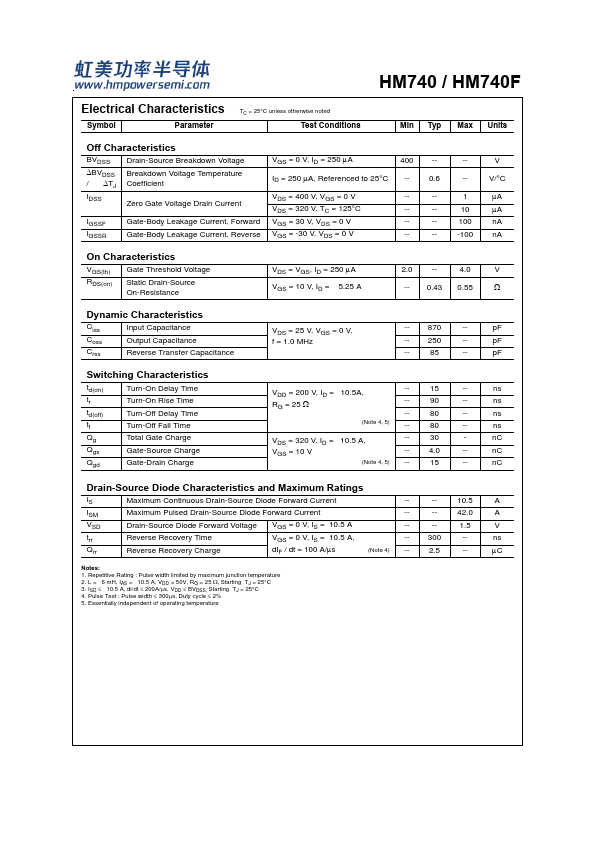

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM740
Manufacturer
H&M Semiconductor
File Size
289.55 KB
Datasheet
HM740-HMSemiconductor.pdf
Description
400V N-Channel MOSFET
