HM740F - 400V N-Channel MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

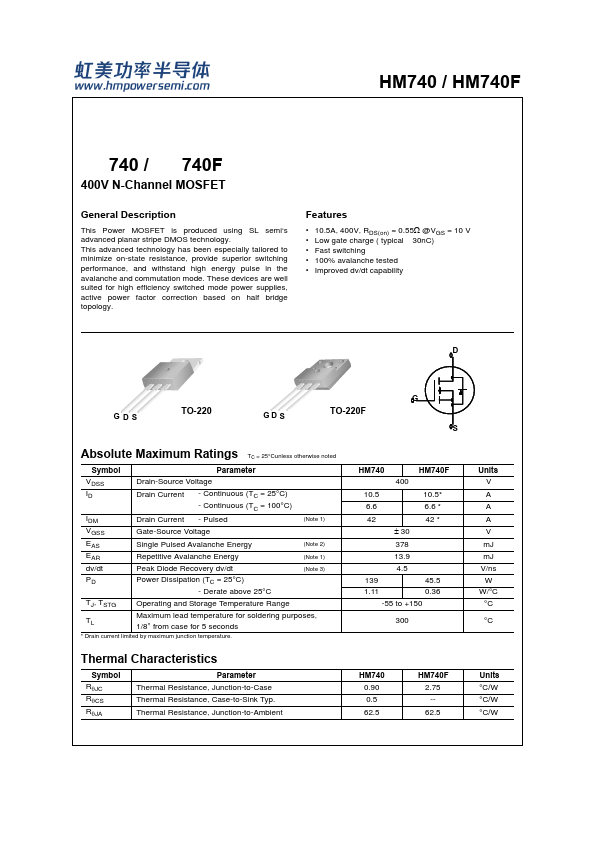

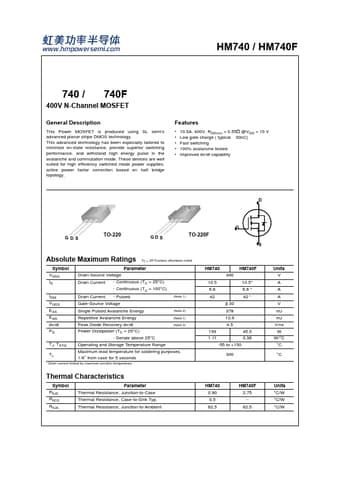

HM740F 400V N-Channel MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM740F

Datasheet Details

Part number	HM740F
Manufacturer	H&M Semiconductor
File Size	289.55 KB
Description	400V N-Channel MOSFET
Datasheet	HM740F Datasheet
Note	This datasheet PDF includes multiple part numbers: HM740F, HM740. Please refer to the document for exact specifications by model.

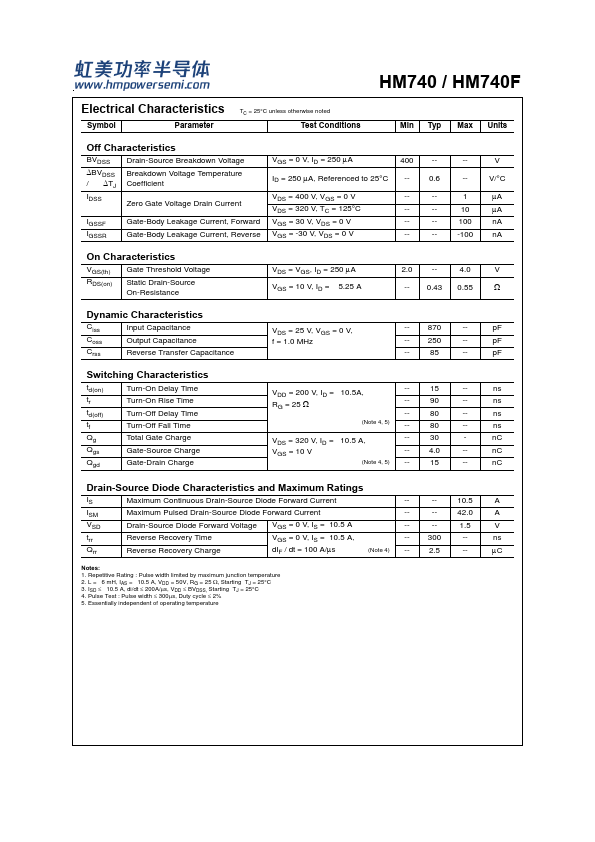

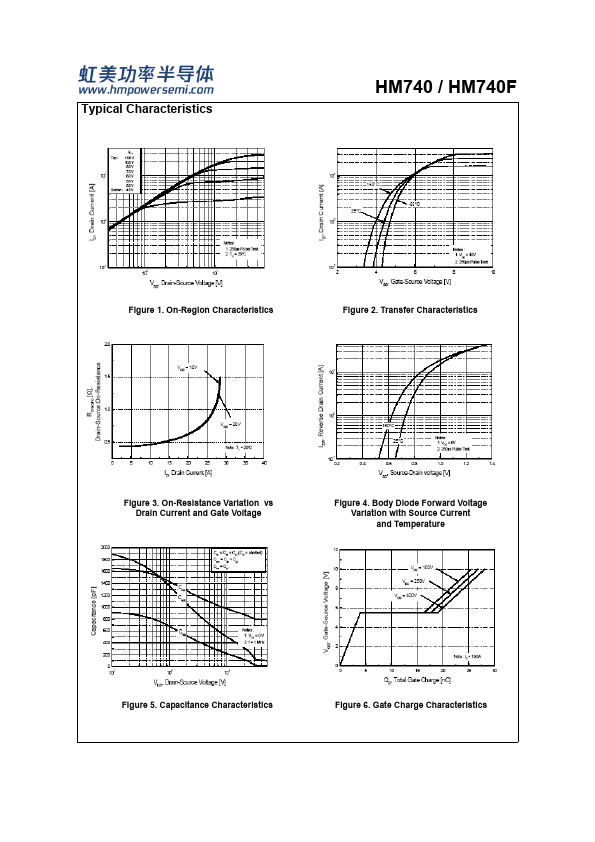

Additional preview pages of the HM740F datasheet.

Product details

Description

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

Features

10.5A, 400V, RDS(on) = 0.55Ω @VGS = 10 V.
Low gate charge ( typical 30nC).
Fast switching.
100% avalanche tested.
Improved dv/dt capability {D GDS TO-220 GD S TO-220F.
◀▲ {G.
{S Absolute Maximum Ratings TC = 25°Cunless otherwise noted Symbol Parameter VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) - Continuous (TC = 100°C) IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage EAS S.
