HMS15N70, HMS15N70K Datasheet - H&M Semiconductor

HMS15N70 700V N-Channel MOSFET

This Power MOSFET is producFeeadtuurseisng H&M Semi’s Advanced Super-Junction This advanced technology theacsh *nb7Lo.oe6wlAeo,gng5a0ytee0. Vsch,paRerDgcSe(oi(na)ttlyylppy. i=cta0al .5i2lΩo5@nrCeV)dGS = 10 V to minimize conduction loss, pr-oHvigihdreugsguedpneesrsior switching perform.

HMS15N70 Features

* -15A, 700V, RDS(on) typ.= 0.3Ω@VGS = 10 V - Low gate charge ( typical - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability 43nC) D D GDS TO-220 GDS TO-220F GDS D D D2-PAK GS GS D-PAK GDS I2-PAK I-PAK G S Absolute Maximum Ratings TC = 25°C unless

HMS15N70K-HMSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HMS15N70, HMS15N70K. Please refer to the document for exact specifications by model.

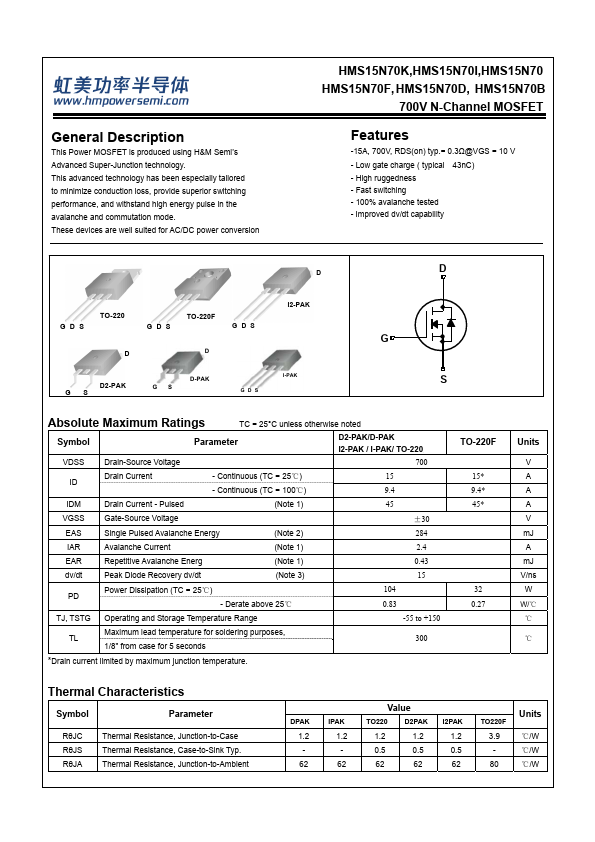

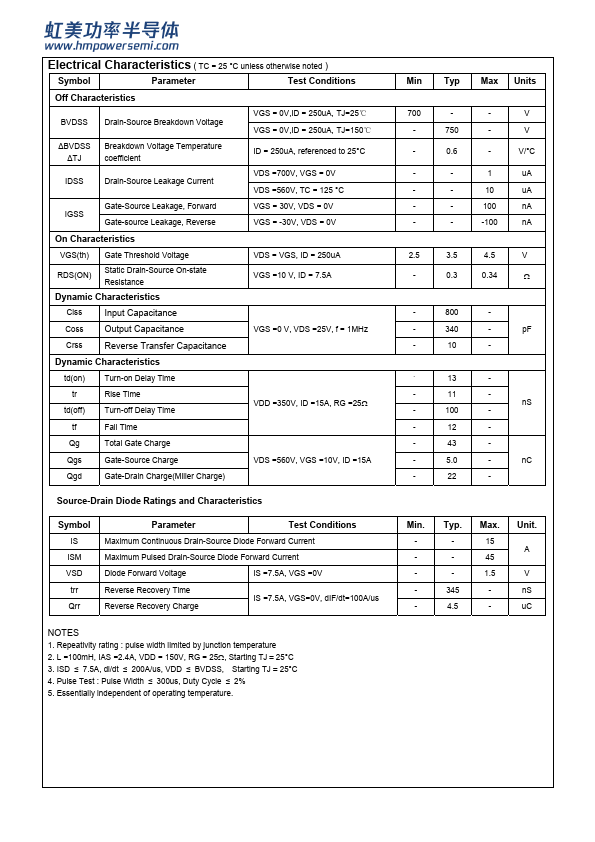

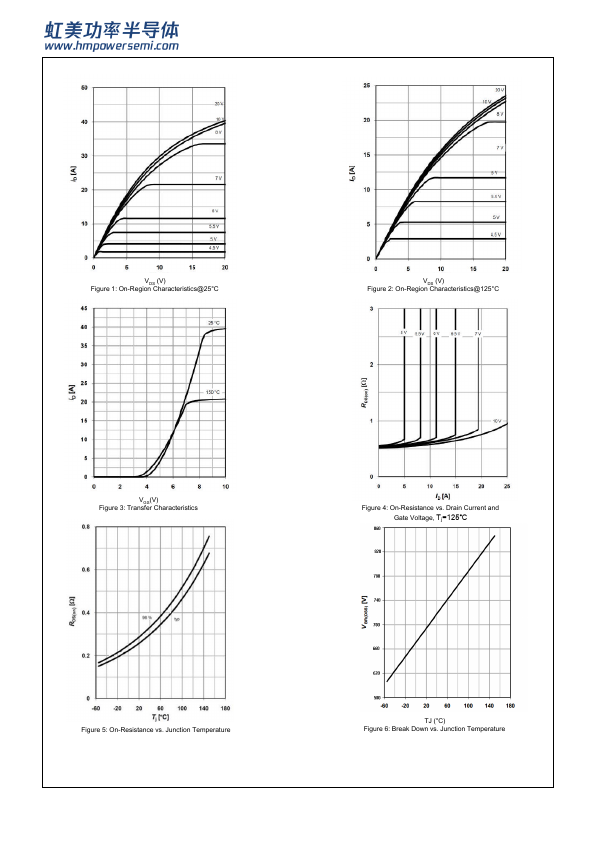

HMS15N70 Datasheet Preview Page 2 HMS15N70 Datasheet Preview Page 3

Datasheet Details

Part number:

HMS15N70, HMS15N70K

Manufacturer:

H&M Semiconductor

File Size:

1.08 MB

Description:

700v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: HMS15N70, HMS15N70K.
Please refer to the document for exact specifications by model.
