HMS15N70I, HMS15N70K 700V N-Channel MOSFET

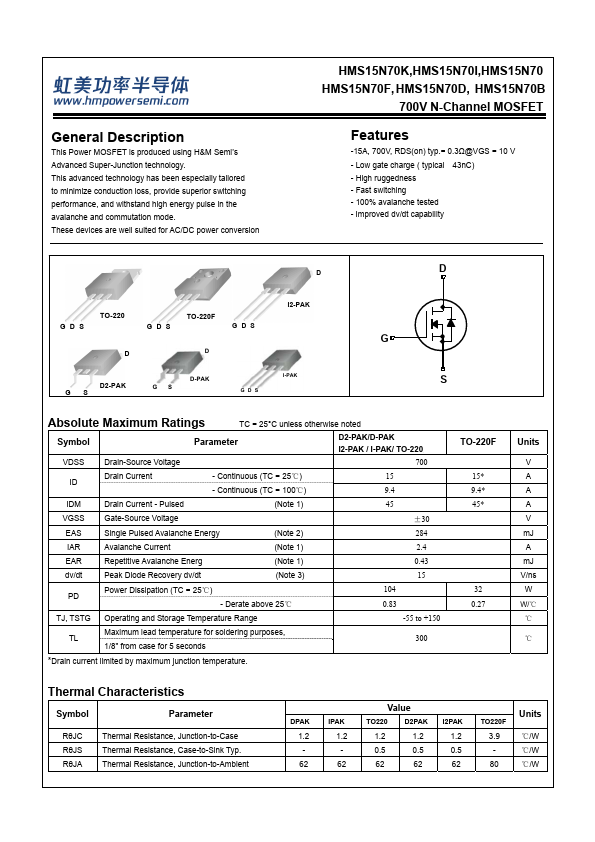

📥 Download Datasheet  Datasheet Preview Page 1

Description

General .
This Power MOSFET is producFeeadtuurseisng H&M Semi’s Advanced Super-Junction This advanced technology theacsh. nb7Lo.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HMS15N70I, HMS15N70K. Please refer to the document for exact specifications by model.

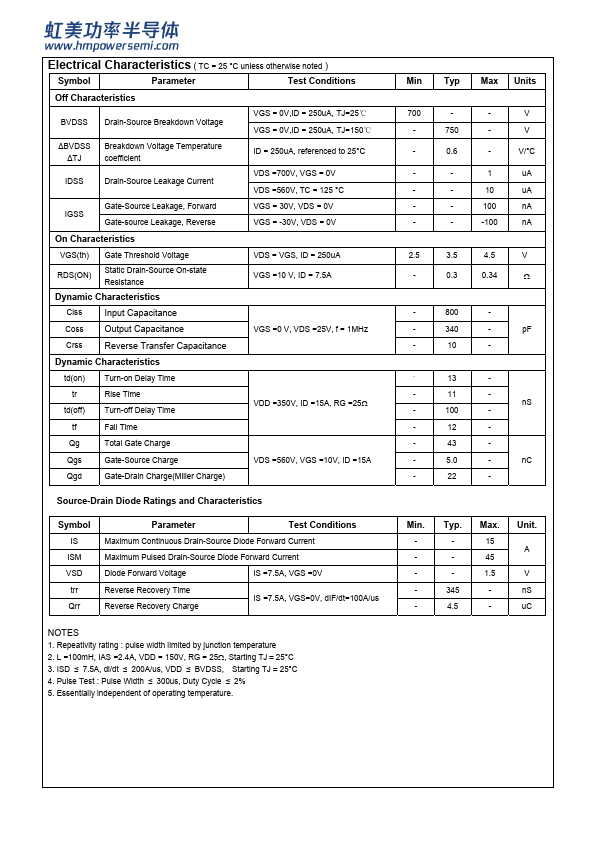

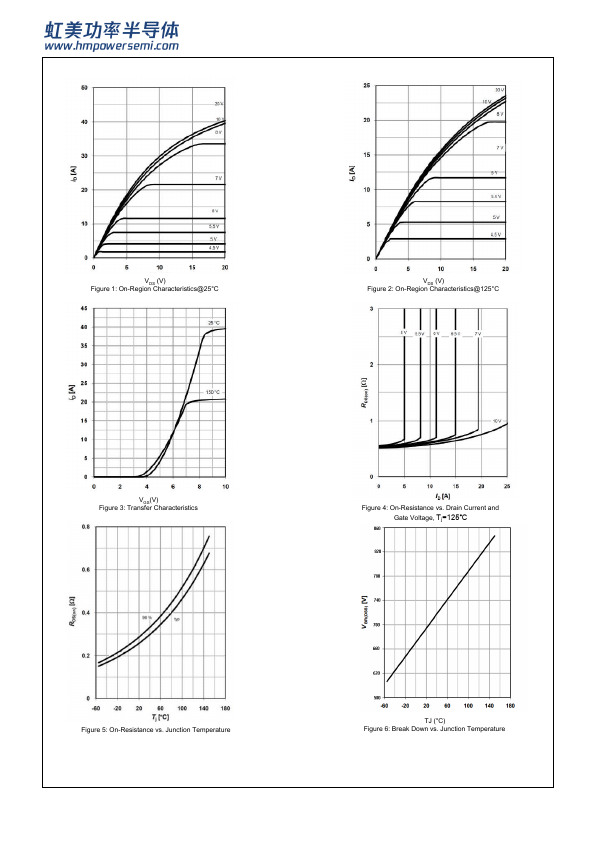

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HMS15N70I, HMS15N70K
Manufacturer
H&M Semiconductor
File Size
1.08 MB
Datasheet
HMS15N70K-HMSemiconductor.pdf
Description
700V N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: HMS15N70I, HMS15N70K.
Please refer to the document for exact specifications by model.

Features

* -15A, 700V, RDS(on) typ. = 0.3Ω@VGS = 10 V - Low gate charge ( typical - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability 43nC) D D GDS TO-220 GDS TO-220F GDS D D D2-PAK GS GS D-PAK GDS I2-PAK I-PAK G S Absolute Maximum Ratings TC = 25°C unless
