HD1H15A - N-Channel Enhancement Mode MOSFET

HD1H15A Description

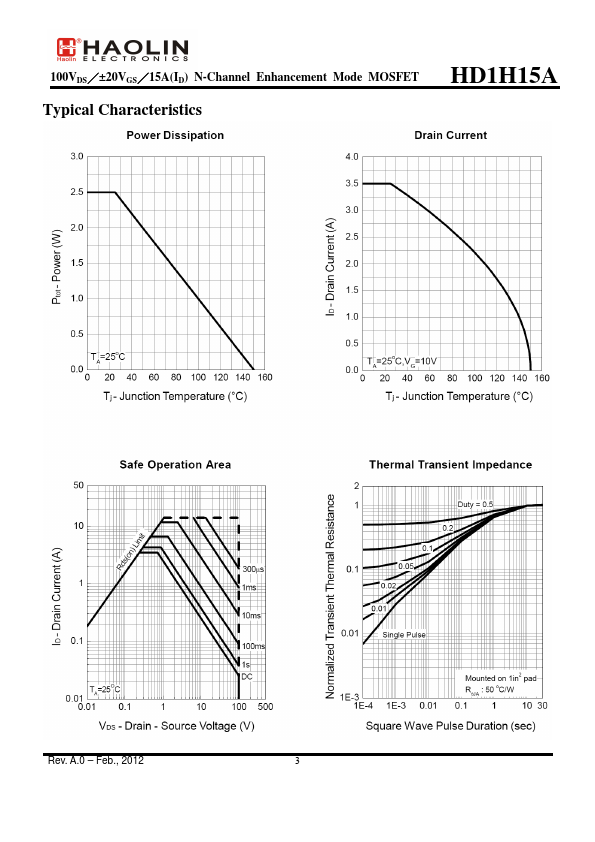

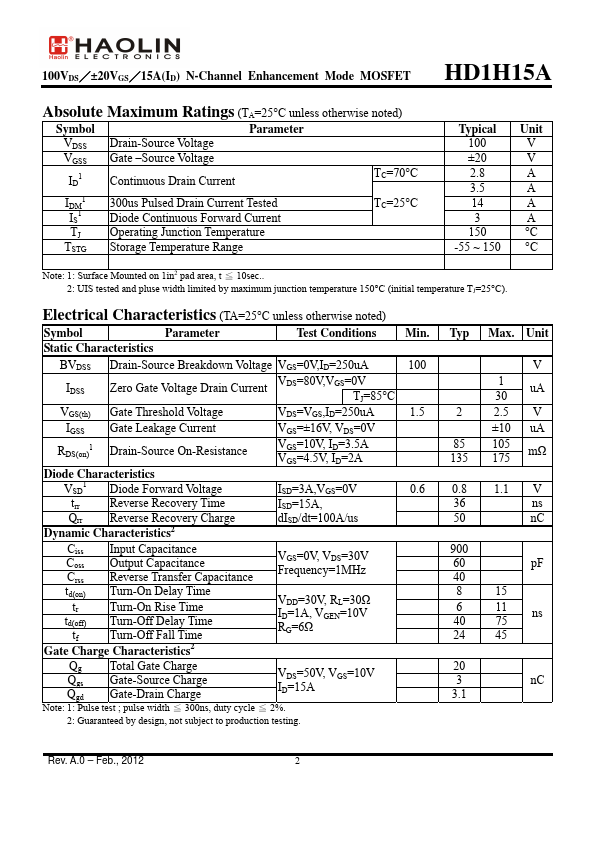

100VDS／±20VGS／15A(ID) N-Channel Enhancement Mode MOSFET HD1H15A .

HD1H15A Features

* VDSS=100V／VGSS=±20V／ID=15A RDS(ON)=105mΩ(Max. )@VGS=10V RDS(ON)=175mΩ(Max. )@VGS=4.5V
* ESD protect
* Reliable and Rugged

HD1H15A Applications

* Synchronous Rectification

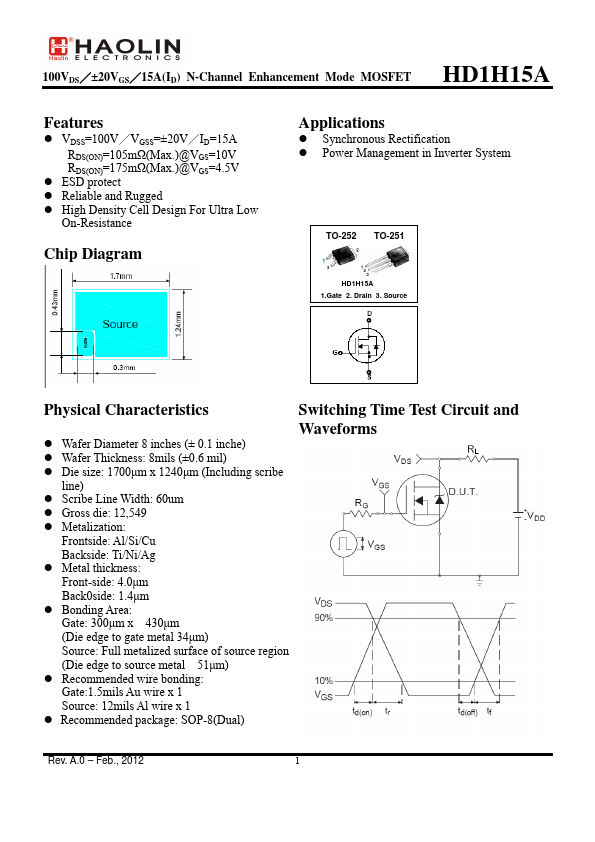

* Power Management in Inverter System TO-252 TO-251 HD1H15A 1.Gate 2. Drain 3. Source Physical Characteristics Switching Time Test Circuit and Waveforms
* Wafer Diameter 8 inches (± 0.1 inche)
* Wafer Thickness: 8mils (±0.6 mil)
* Die size: 1700μm x
