BT151

SCRs

HAOPIN

BT151 Features

* Blocking voltage to 800 V On-state RMS current to 12 A Ultra low gate trigger current SYMBOL VDRM VRRM PARAMETER Repetitive peak off-state voltages Voltages IT RMS ITSM RMS on-state current Non-repetitive peak on-state current 500R 650R 800R Value 500 650 800 12 100 Unit V A A SYMBOL Rth j-m

BT151 General Description

Standard gate triggering SCR is fully isolated package suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system. Symbol Sim.

BT151 Datasheet (459.37 KB)

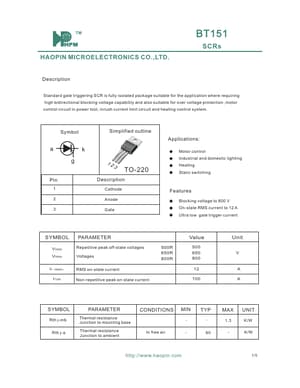

BT151 Datasheet Preview — Preview of BT151 PDF

Datasheet Details

Part number:

BT151

Manufacturer:

HAOPIN

File Size:

459.37 KB

Description:

Scrs.
