MRF455 Datasheet, TRANSISTOR, HGSemi

MRF455 Features

• Transistor
• Specified 12.5V, 30MHz Characteristics
• PO = 70W
• GP = 13 dB min. at 70 W/30 MHz
• Omnigold™ Metalization System DIMENSIONS D A F qC U1 B H 4 α L

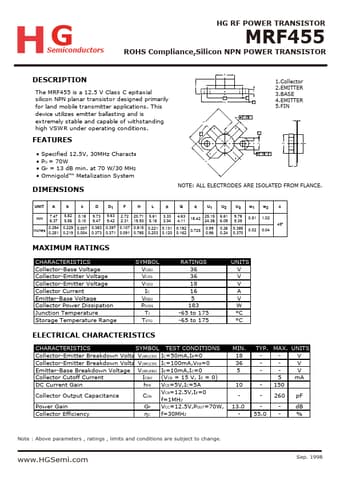

PDF File Details

Part number:

MRF455

Manufacturer:

HGSemi

File Size:

299.34kb

Download:

📄 Datasheet

Description:

Hg rf power transistor. The MRF455 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed primarily for land mobile transmitter applications. T

MRF455 Application

• Applications This device utilizes emitter ballasting and is extremely stable and capable of withstanding high VSWR under operating conditions. FEAT
