MRF454, MRF454-MA - The RF Line NPN Silicon Power Transistor

MRF454 Description

MRF454 The RF Line NPN Silicon Power Transistor 80W, 30MHz, 12.5V Designed for power amplifier applications in industrial, commercial and amateur radi.

MRF454 Applications

* in industrial, commercial and amateur radio equipment to 30 MHz.
* Specified 12.5 V, 30 MHz characteristics
* Output power = 80 W
* Minimum gain = 12 dB
* Efficiency = 50% Product Image Rev. V1 CASE 211
* 11, STYLE 1 1 M/A-COM Technology Solutions Inc. (MACOM) and its affil

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MRF454, MRF454-MA. Please refer to the document for exact specifications by model.

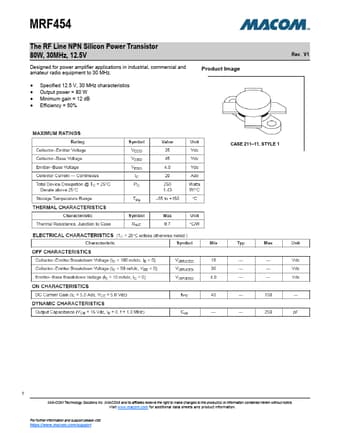

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF454, MRF454-MA
Manufacturer
MA-COM
File Size
454.62 KB
Datasheet
MRF454-MA-COM.pdf
Description
The RF Line NPN Silicon Power Transistor
Note
This datasheet PDF includes multiple part numbers: MRF454, MRF454-MA.
Please refer to the document for exact specifications by model.
