MRF402 Datasheet - Motorola

MRF402 HIGH FREQUENCY TRANSISTOR

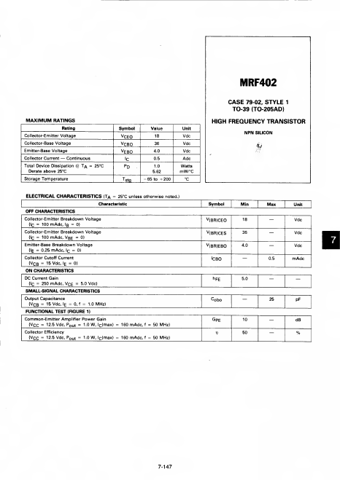

MRF402 MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous @Total Device Dissipation T& = 25°C Derate above 25°C Storage Temperature Symbol VCEO VCBO v EBO "C PD Tstg Value 18 36 4.0 0.5 1.0 5.62 -65 to +200 Unit Vdc Vdc Vdc Adc Watts mW/°C °C CASE 79-02, STYLE 1 TO-39 (TO-205AD) HIGH FREQUENCY TRANSISTOR NPN SILICON ff ELECTRICAL CHARACTERISTICS (Ta = 25°C unless otherwise noted. Characteristic OFF CH.

MRF402 Datasheet (39.13 KB)
