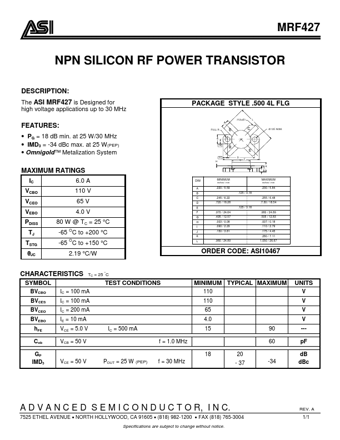

MRF427 Datasheet, transistor equivalent, Advanced Semiconductor

MRF427 Features

• Transistor
• PG = 18 dB min. at 25 W/30 MHz
• IMD3 = -34 dBc max. at 25 W (PEP)
• Omnigold™ Metalization System E C Ø.125 NOM. C B B D G F E E H MAXIMUM RATINGS IC

PDF File Details

Part number:

MRF427

Manufacturer:

Advanced Semiconductor

File Size:

12.73kb

Download:

📄 Datasheet

Description:

Npn silicon rf power transistor. The ASI MRF427 is Designed for high voltage applications up to 30 MHz PACKAGE STYLE .500 4L FLG .112x45° L A FULL R FEATURES:

MRF427 Application

• Applications up to 30 MHz PACKAGE STYLE .500 4L FLG .112x45° L A FULL R FEATURES:
• PG = 18 dB min. at 25 W/30 MHz
• IMD3 = -34 dB
